Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	RX30 Series
Standard Package	1000
Manufacturer	Rubycon
Series	RX30
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 130°C
Operating Temperature	-40°C ~ 130°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	110mA @ 120Hz
Ripple Current @ High Frequency	200mA @ 100kHz
Impedance	1 Ohms
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.532" (13.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

63RX3047M10X12.5	Rubycon, 47µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
35RX30100MT78X11.5	Rubycon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
50RX3033M8X11.5	Rubycon, 33µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
200RX3010M8X16	Rubycon, 10µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
50RX302200M18X40	Rubycon, 2200µF 50V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 130°C, RX30	View
100RX3047M10X16	Rubycon, 47µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
50RX3047M8X11.5	Rubycon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
63RX30100M10X16	Rubycon, 100µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
35RX30100MT78X11.5	Rubycon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
50RX3010M8X11.5	Rubycon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
63RX3033M8X11.5	Rubycon, 33µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
63RX301500M18X40	Rubycon, 1500µF 63V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 130°C, RX30	View

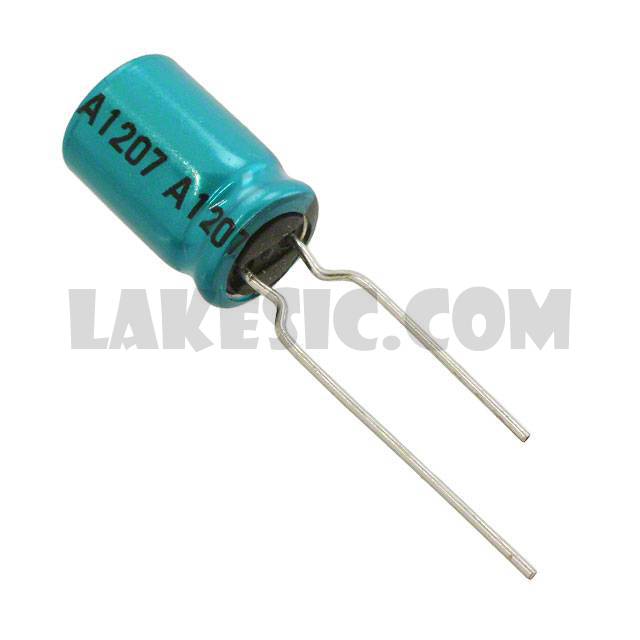

100RX3010MTA8X11.5

Part Number100RX3010MTA8X11.5
