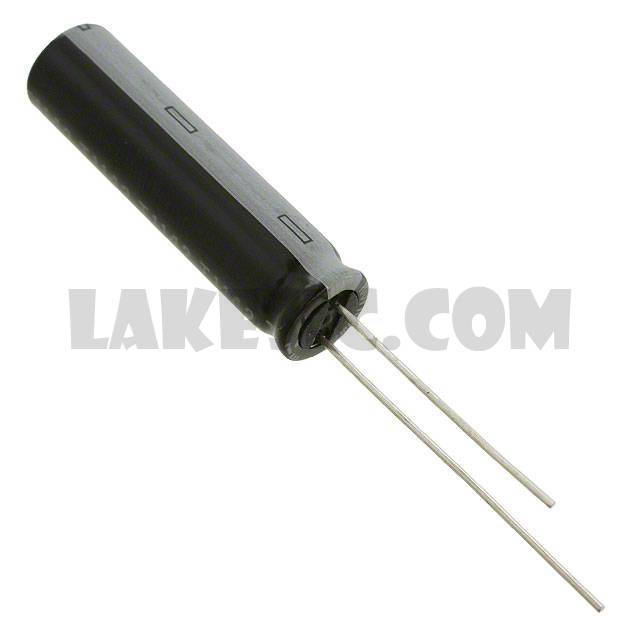

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	TXW Series
Standard Package	500
Manufacturer	Rubycon
Series	TXW
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	785mA @ 120Hz
Ripple Current @ High Frequency	1.57A @ 100kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	1.260" (32.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

160TXW470MEFC18X35	Rubycon, 470µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW150MEFC10X40	Rubycon, 150µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
350TXW56MEFC10X40	Rubycon, 56µF 350V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW560MEFR18X40	Rubycon, 560µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
250TXW100MEFC12.5X30	Rubycon, 100µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW270MEFC12.5X40	Rubycon, 270µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
450TXW100MEFC18X35	Rubycon, 100µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW100MEFC8X40	Rubycon, 100µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
63TXW220MEFC8X30	Rubycon, 220µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, TXW	View
420TXW82MEFC18X25	Rubycon, 82µF 420V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
63TXW390MEFC10X30	Rubycon, 390µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, TXW	View
200TXW220MEFC16X30	Rubycon, 220µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View

100TXW100MEFC8X30

Part Number100TXW100MEFC8X30
