Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXG Series
Standard Package	1000
Manufacturer	Rubycon
Series	YXG
Packaging	Bulk
Part Status	Active
Capacitance	82µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	6000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	233mA @ 120Hz
Ripple Current @ High Frequency	466mA @ 100kHz
Impedance	230 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.709" (18.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

25YXG470MEFC8X20	Rubycon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
6.3YXG4700MEFC12.5X30	Rubycon, 4700µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
10YXG470MEFC8X11.5	Rubycon, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
10YXG220MEFC6.3X11	Rubycon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, YXG	View
16YXG1000MEFC12.5X16	Rubycon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
50YXG560MEFC12.5X25	Rubycon, 560µF 50V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
25YXG4700MEFC18X35.5	Rubycon, 4700µF 25V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
16YXG3900MEFC12.5X40	Rubycon, 3900µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
35YXG1000MEFC12.5X25	Rubycon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View

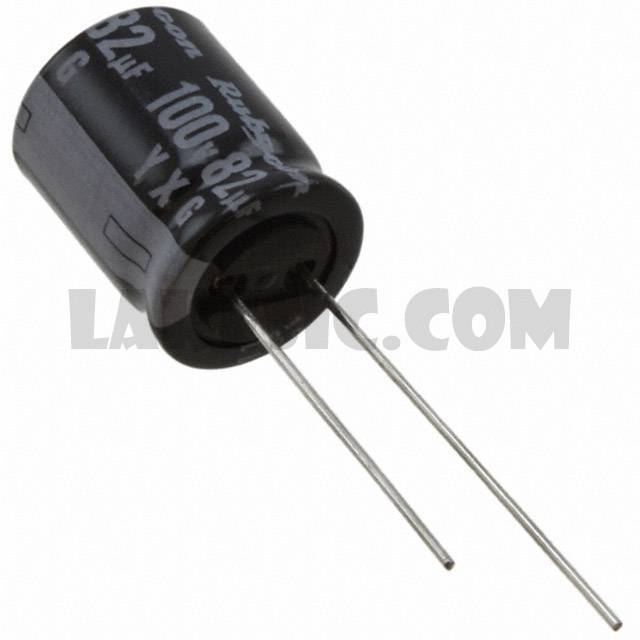

100YXG82MEFC12.5X16	Rubycon, 82µF 100V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
