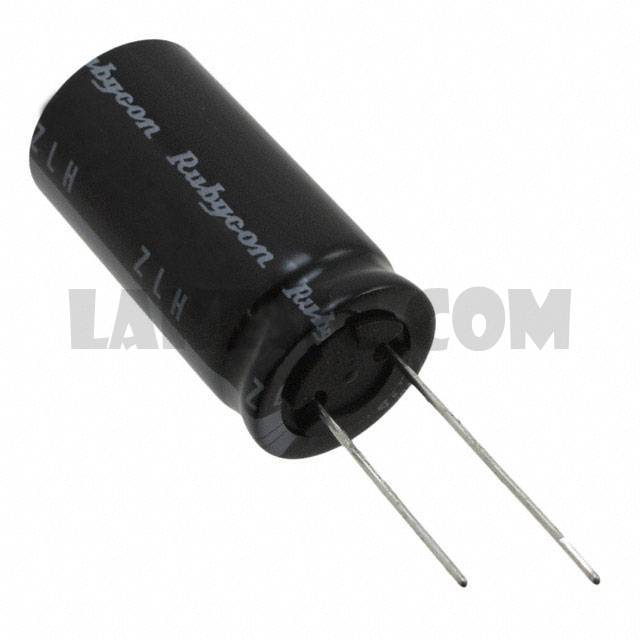

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ZLH Series Datasheet
Standard Package	200
Manufacturer	Rubycon
Series	ZLH
Packaging	Bulk
Part Status	Active
Capacitance	560µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.359A @ 120Hz
Ripple Current @ High Frequency	2.47A @ 100kHz
Impedance	27 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.319" (33.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

50ZLH100MEFC8X11.5	Rubycon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, ZLH	View
80ZLH82MEFC10X12.5	Rubycon, 82µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
100ZLH100MEFC12.5X16	Rubycon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
80ZLH560MEFC18X20	Rubycon, 560µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
63ZLH2200MEFC18X40	Rubycon, 2200µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
63ZLH18MEFC5X11	Rubycon, 18µF 63V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLH	View
10ZLH6800MEFC16X25	Rubycon, 6800µF 10V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
35ZLH1500MEFC12.5X30	Rubycon, 1500µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
25ZLH3300MEFC16X25	Rubycon, 3300µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
25ZLH680MEFCT810X16	Rubycon, 680µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
10ZLH4700MEFC16X20	Rubycon, 4700µF 10V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
50ZLH820MEFC12.5X35	Rubycon, 820µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View

100ZLH560MEFC18X31.5

Part Number100ZLH560MEFC18X31.5
