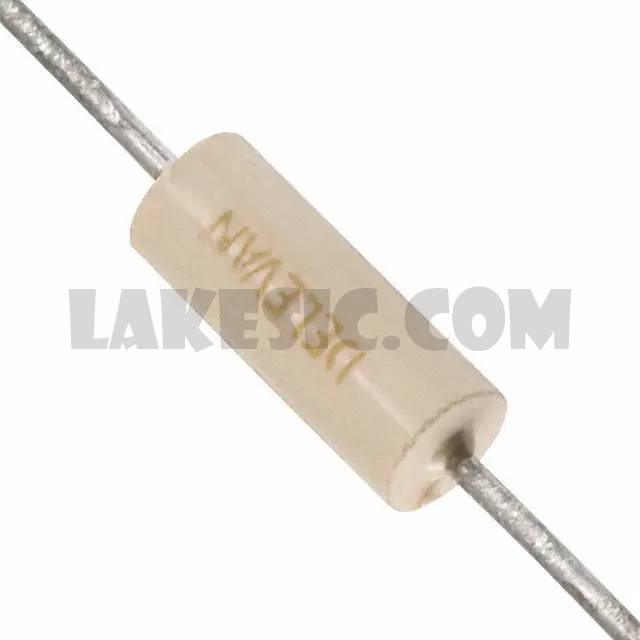

1025-18K

1025-18K

Part Number1025-18K

ManufacturerAPI Delevan Inc.

DescriptionFIXED IND 820NH 420MA 850 MOHM

Datasheet1025(R),26(R) Series

Package / CaseAxial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description820nH Unshielded Inductor 420mA 850mOhm Max Axial

To learn about the specification of 1025-18K, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 1025-18K with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 1025-18K.
We are offering 1025-18K for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

1025-18K - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	1025(R),26(R) Series
Standard Package	1
Manufacturer	API Delevan Inc.
Series	Military, MIL-PRF-M15305, MS75083
Packaging	Cut Tape (CT)
Part Status	Active
Type	-
Material - Core	Phenolic
Inductance	820nH
Tolerance	±10%
Current Rating (Amps)	420mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	850mOhm Max
Q @ Freq	28 @ 25MHz
Frequency - Self Resonant	250MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	25MHz
Mounting Type	Through Hole
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.095" Dia x 0.250" L (2.41mm x 6.35mm)
Height - Seated (Max)	-
