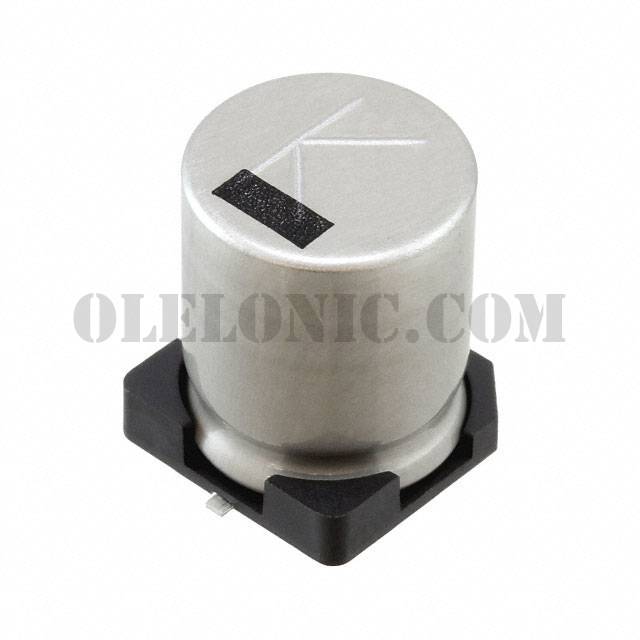

10TLV2200M12.5X16

Part Number10TLV2200M12.5X16

To learn about the specification of 10TLV2200M12.5X16, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 10TLV2200M12.5X16 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 10TLV2200M12.5X16.
We are offering 10TLV2200M12.5X16 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	TLV Series Datasheet
Standard Package	150
Manufacturer	Rubycon
Series	TLV
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	2200µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	840mA @ 120Hz
Ripple Current @ High Frequency	1.4A @ 100kHz
Impedance	55 mOhms
Lead Spacing	-
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.650" (16.50mm)
Surface Mount Land Size	0.512" L x 0.512" W (13.00mm x 13.00mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
