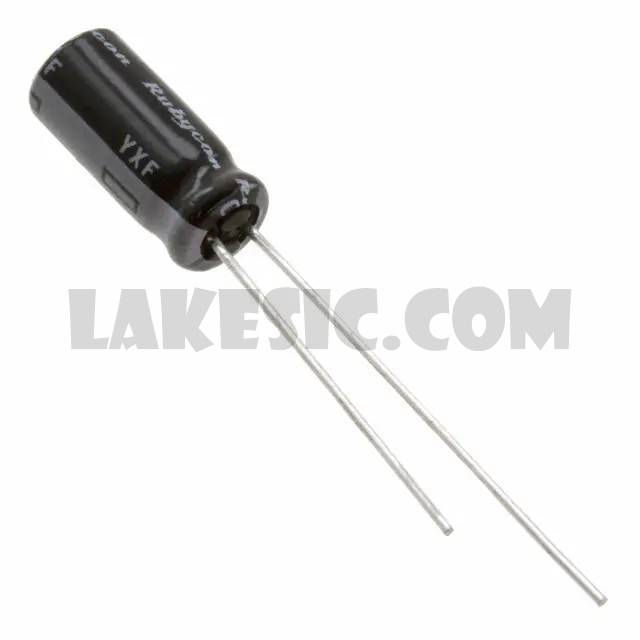

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXF Series
Standard Package	2000
Manufacturer	Rubycon
Series	YXF
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	4000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	105mA @ 120Hz
Ripple Current @ High Frequency	150mA @ 100kHz
Impedance	900 mOhms
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

25YXF330MEFCT810X12.5	Rubycon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXF	View
35YXF100MEFCT78X11.5	Rubycon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXF	View
63YXF10MEFCT15X11	Rubycon, 10µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View
10YXF2200MEFC12.5X20	Rubycon, 2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, YXF	View
25YXF47MEFC5X11	Rubycon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View
16YXF100MEFC6.3X11	Rubycon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View
63YXF10MEFCT15X11	Rubycon, 10µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View
16YXF1000MEFCT810X20	Rubycon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXF	View
50YXF330MEFCT810X20	Rubycon, 330µF 50V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXF	View
25YXF2200MEFC16X25	Rubycon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXF	View
10YXF470MEFCT78X11.5	Rubycon, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXF	View
35YXF1000MEFCG412.5X25	Rubycon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXF	View

10YXF100MEFCT15X11

Part Number10YXF100MEFCT15X11
