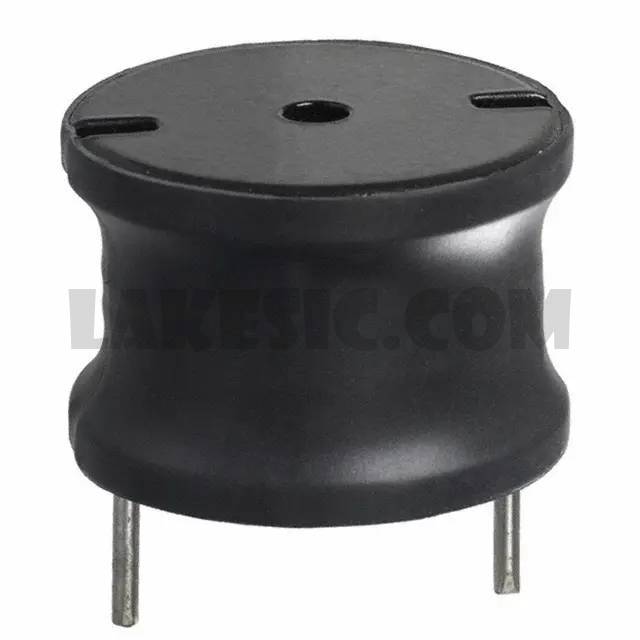

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	1140 Series
Standard Package	70
Manufacturer	Bourns Inc.
Series	1140
Packaging	Bulk
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	100µH
Tolerance	±10%
Current Rating (Amps)	10.5A
Current - Saturation	20.6A
Shielding	Unshielded
DC Resistance (DCR)	25mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-55°C ~ 105°C
Inductance Frequency - Test	1kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	1.500" Dia (38.10mm)
Height - Seated (Max)	1.030" (26.16mm)
Base Part Number	1140
