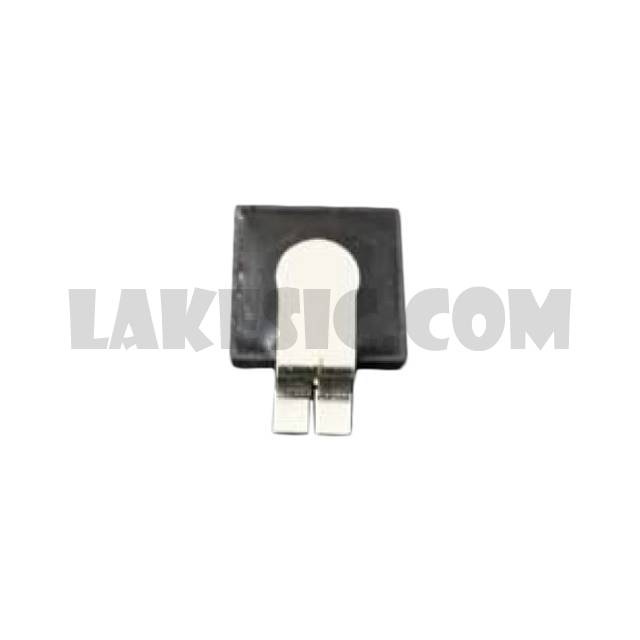

123SPC100A

123SPC100A

Part Number123SPC100A

ManufacturerSMC Diode Solutions

DescriptionDIODE SCHOTTKY 100V 120A SPD-3A

Datasheet123SPC080(A), 123SPC100(A)

Package / CaseSPD-3A

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 100V 120A Surface Mount SPD-3A

To learn about the specification of 123SPC100A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 123SPC100A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 123SPC100A.
We are offering 123SPC100A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

123SPC100A - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	123SPC080(A), 123SPC100(A)
Standard Package	100
Manufacturer	SMC Diode Solutions
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	120A
Voltage - Forward (Vf) (Max) @ If	870mV @ 120A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	2mA @ 100V
Capacitance @ Vr, F	3000pF @ 5V, 1MHz
Mounting Type	Surface Mount
Package / Case	SPD-3A
Supplier Device Package	SPD-3A
Operating Temperature - Junction	-55°C ~ 175°C
