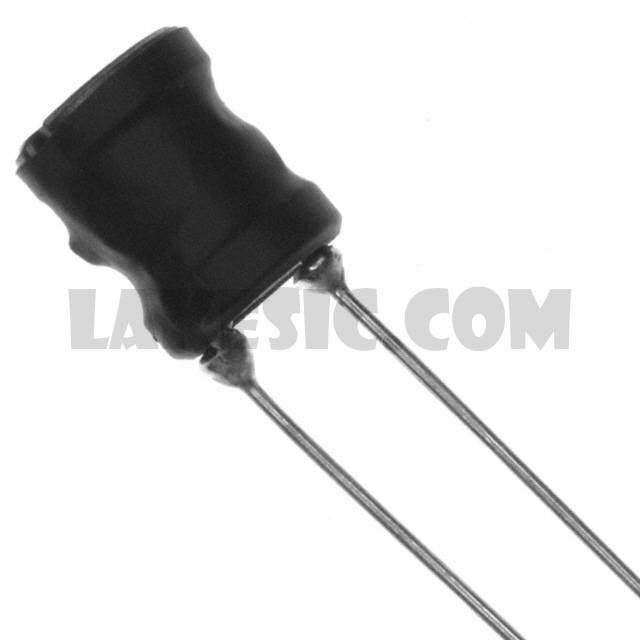

13R222C


13R222C

Part Number13R222C

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

13R222C - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package200
ManufacturerMurata Power Solutions Inc.
Series1300R
PackagingBulk
Part StatusActive
TypeWirewound
Material - Core-
Inductance2.2µH
Tolerance±20%
Current Rating (Amps)5.3A
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)10mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-40°C ~ 85°C
Inductance Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical Cylinder
Supplier Device Package-
Size / Dimension0.374" Dia (9.50mm)
Height - Seated (Max)0.532" (13.50mm)
