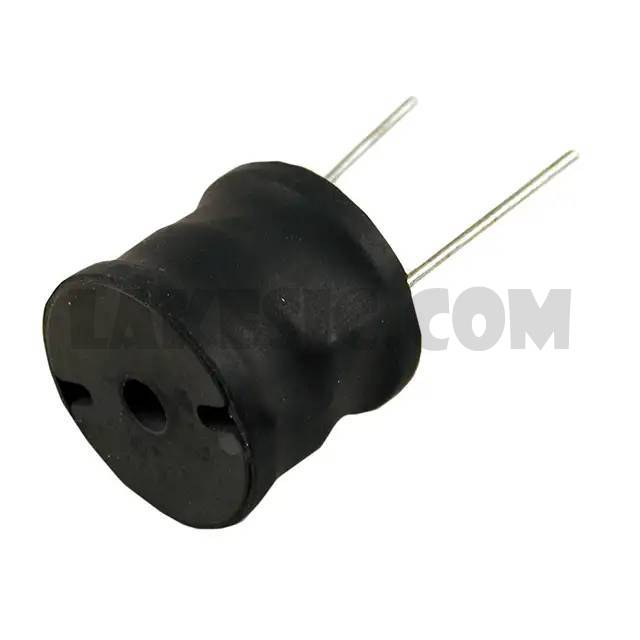

1539M11


1539M11

Part Number1539M11

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

1539M11 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerHammond Manufacturing
Series1539
PackagingBulk
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance10µH
Tolerance±10%
Current Rating (Amps)17A
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)6mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-
Inductance Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical Cylinder
Supplier Device Package-
Size / Dimension1.220" Dia (30.99mm)
Height - Seated (Max)1.110" (28.19mm)
