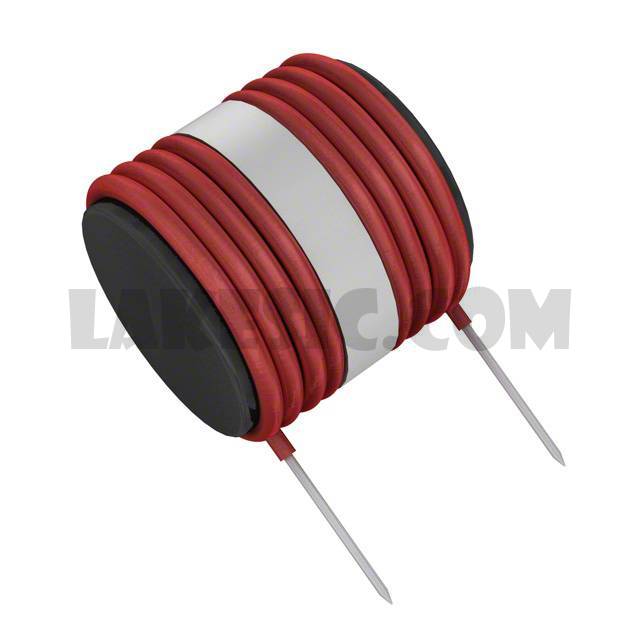

15HC-100

Part Number15HC-100

ManufacturerAPI Delevan Inc.

DescriptionFIXED IND 100UH 15A 30 MOHM TH

DatasheetHC(R) Series

Package / CaseRadial, Horizontal Cylinder (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description100µH Unshielded Wirewound Inductor 15A 30mOhm Max Radial, Horizontal Cylinder (Open)

To learn about the specification of 15HC-100, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 15HC-100 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 15HC-100.
We are offering 15HC-100 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

15HC-100 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

HC(R) Series

Standard Package

Manufacturer

API Delevan Inc.

Series

Packaging

Bulk

Part Status

Active

Type

Wirewound

Material - Core

Ferrite

Inductance

100µH

Tolerance

±10%

Current Rating (Amps)

15A

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

30mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

Inductance Frequency - Test

1kHz

Mounting Type

Through Hole

Package / Case

Radial, Horizontal Cylinder (Open)

Supplier Device Package

Size / Dimension

1.500" Dia x 1.625" L (38.10mm x 41.28mm)

Height - Seated (Max)
