Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	PK Series
Standard Package	1000
Manufacturer	Rubycon
Series	PK
Packaging	Bulk
Part Status	Active
Capacitance	4700µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.05A @ 120Hz
Ripple Current @ High Frequency	2.3575A @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.043" (26.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

25PK470MEFC8X11.5	Rubycon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
50PK2200MEFC16X31.5	Rubycon, 2200µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
16PK100MEFCTA5X11	Rubycon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
350PK22MEFC12.5X20	Rubycon, 22µF 350V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
250PK1MEFC6.3X11	Rubycon, 1µF 250V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
16PK220MEFC6.3X11	Rubycon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
250PK10MEFC10X12.5	Rubycon, 10µF 250V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
25PK4700MEFC16X25	Rubycon, 4700µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
63PK2200MEFC18X31.5	Rubycon, 2200µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
35PK330MEFC10X12.5	Rubycon, 330µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
50PK1000MEFCCC12.5X25	Rubycon, 1000µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
6.3PK680MEFC6.3X11	Rubycon, 680µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View

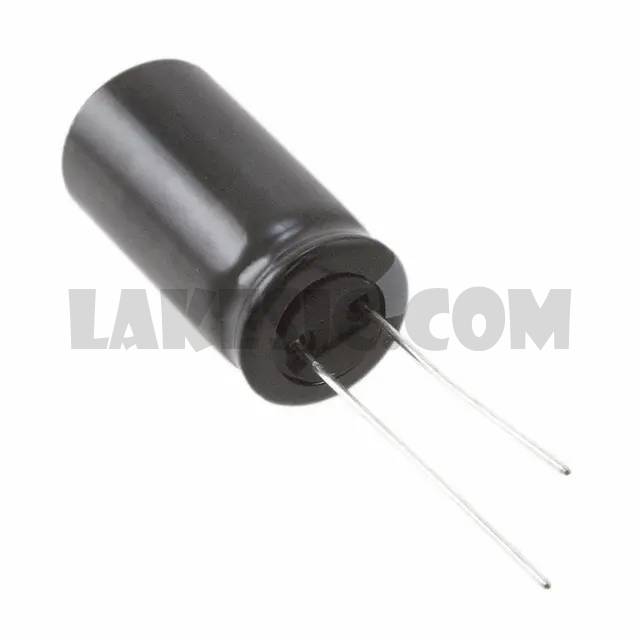

16PK4700MEFC12.5X25

Part Number16PK4700MEFC12.5X25
