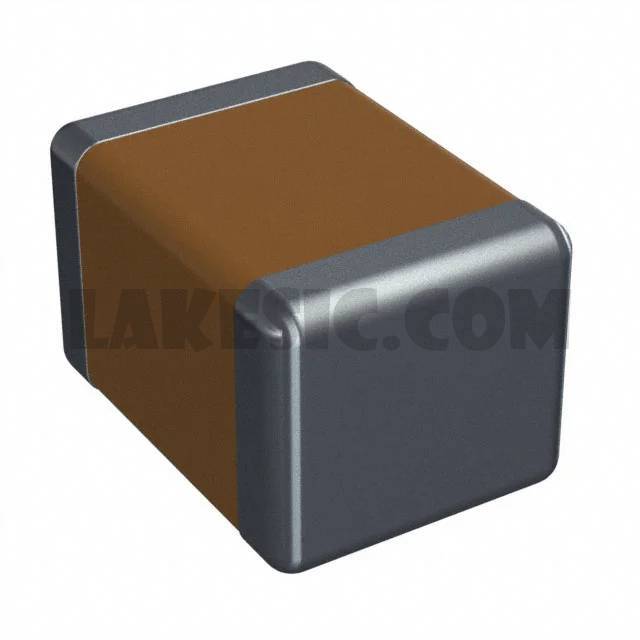

Categories	Capacitors / Ceramic Capacitors
Datasheet	High Voltage MLC Chips
Standard Package	500
Manufacturer	AVX Corporation
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	1000pF
Tolerance	±5%
Voltage - Rated	2000V (2kV)
Temperature Coefficient	C0G, NP0
Operating Temperature	-55°C ~ 125°C
Features	High Voltage
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Surface Mount, MLCC
Package / Case	1812 (4532 Metric)
Size / Dimension	0.181" L x 0.126" W (4.60mm x 3.20mm)
Height - Seated (Max)	-
Thickness (Max)	0.087" (2.20mm)
Lead Spacing	-
Lead Style	-
