Categories	Capacitors / Ceramic Capacitors
Datasheet	High Voltage MLC Chips
Standard Package	1000
Manufacturer	AVX Corporation
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	10pF
Tolerance	±5%
Voltage - Rated	3000V (3kV)
Temperature Coefficient	C0G, NP0
Operating Temperature	-55°C ~ 125°C
Features	High Voltage
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Surface Mount, MLCC
Package / Case	1812 (4532 Metric)
Size / Dimension	0.181" L x 0.126" W (4.60mm x 3.20mm)
Height - Seated (Max)	-
Thickness (Max)	0.057" (1.45mm)
Lead Spacing	-
Lead Style	-

18121A472JAT2A	AVX Corporation, 4700pF ±5% 100V Ceramic Capacitor C0G, NP0 1812 (4532 Metric),	View
04025A1R2CAT2A	AVX Corporation, 1.2pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric),	View
12065A4R7CAT2A	AVX Corporation, 4.7pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 1206 (3216 Metric),	View
04025A2R7CAT2A	AVX Corporation, 2.7pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric),	View
08055A201JAT2A	AVX Corporation, 200pF ±5% 50V Ceramic Capacitor C0G, NP0 0805 (2012 Metric),	View
06031A2R2BAT2A	AVX Corporation, 2.2pF ±0.1pF 100V Ceramic Capacitor C0G, NP0 0603 (1608 Metric),	View
02015A220JAT2A	AVX Corporation, 22pF ±5% 50V Ceramic Capacitor C0G, NP0 0201 (0603 Metric),	View
12061A101KAT2A	AVX Corporation, 100pF ±10% 100V Ceramic Capacitor C0G, NP0 1206 (3216 Metric),	View
08051A200FAT2A	AVX Corporation, 20pF ±1% 100V Ceramic Capacitor C0G, NP0 0805 (2012 Metric),	View
08055A181FAT2A	AVX Corporation, 180pF ±1% 50V Ceramic Capacitor C0G, NP0 0805 (2012 Metric),	View
04025A150CAT2A	AVX Corporation, 15pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric),	View
06035A180FAT2A	AVX Corporation, 18pF ±1% 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric),	View

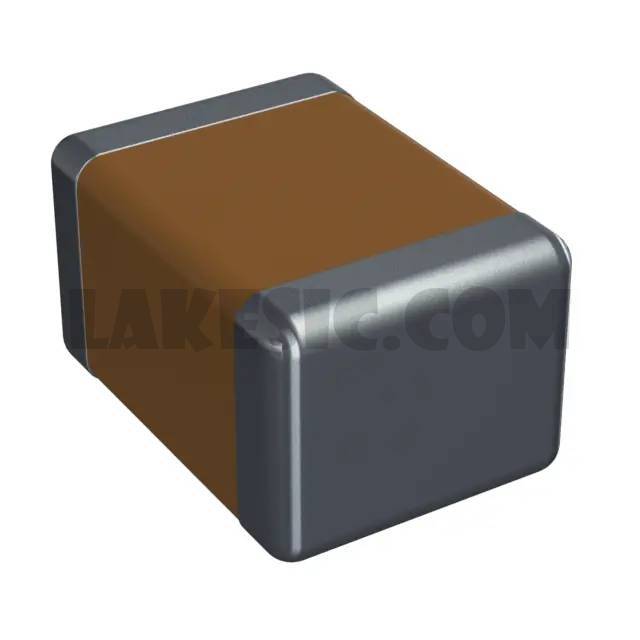

1812HA100JAT1A

Part Number1812HA100JAT1A
