1N4148WL2-TP

1N4148WL2-TP

Part Number1N4148WL2-TP

ManufacturerMicro Commercial Co

DescriptionDIODE GP 100V 150MA DFN1006-2

Datasheet1N4148WL2

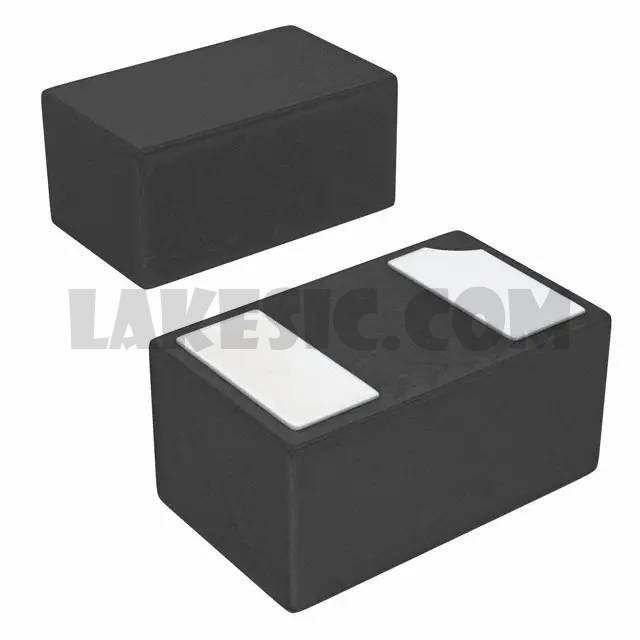

Package / Case0402 (1006 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 100V 150mA Surface Mount DFN1006-2

To learn about the specification of 1N4148WL2-TP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 1N4148WL2-TP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 1N4148WL2-TP.
We are offering 1N4148WL2-TP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

1N4148WL2-TP - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N4148WL2
Standard Package	10000
Manufacturer	Micro Commercial Co
Series	*
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	150mA
Voltage - Forward (Vf) (Max) @ If	1.25V @ 100mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	4ns
Current - Reverse Leakage @ Vr	5µA @ 75V
Capacitance @ Vr, F	1.5pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	0402 (1006 Metric)
Supplier Device Package	DFN1006-2
Operating Temperature - Junction	-65°C ~ 150°C
