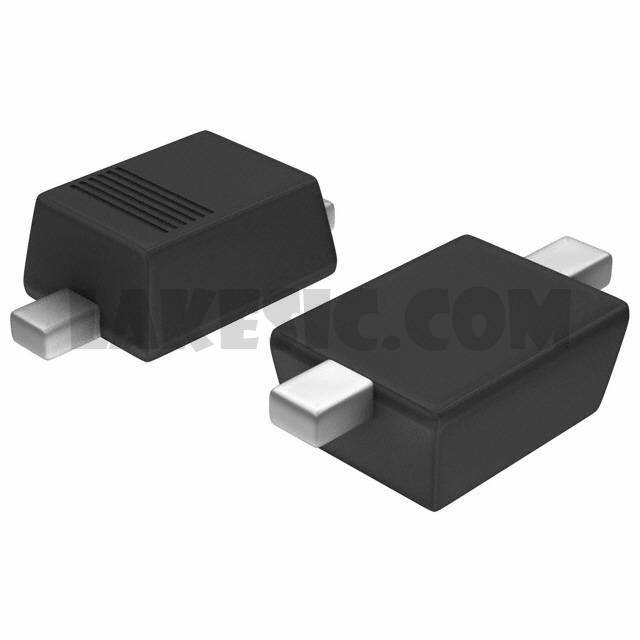

1N4148WXL-TP

1N4148WXL-TP

Part Number1N4148WXL-TP

ManufacturerMicro Commercial Co

DescriptionDIODE GP 100V 150MA SOD323FL

Datasheet1N4148WXL

Package / CaseSC-90, SOD-323F

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 100V 150mA Surface Mount SOD-323FL

To learn about the specification of 1N4148WXL-TP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 1N4148WXL-TP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 1N4148WXL-TP.
We are offering 1N4148WXL-TP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

1N4148WXL-TP - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N4148WXL
Standard Package	3000
Manufacturer	Micro Commercial Co
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	150mA
Voltage - Forward (Vf) (Max) @ If	1V @ 50mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	4ns
Current - Reverse Leakage @ Vr	5µA @ 75V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	SC-90, SOD-323F
Supplier Device Package	SOD-323FL
Operating Temperature - Junction	-55°C ~ 150°C
