Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N5059 thru 1M5062
Standard Package	4500
Manufacturer	Central Semiconductor Corp
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.2V @ 1A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	5µA @ 600V
Capacitance @ Vr, F	15pF @ 4V, 1MHz
Mounting Type	Through Hole

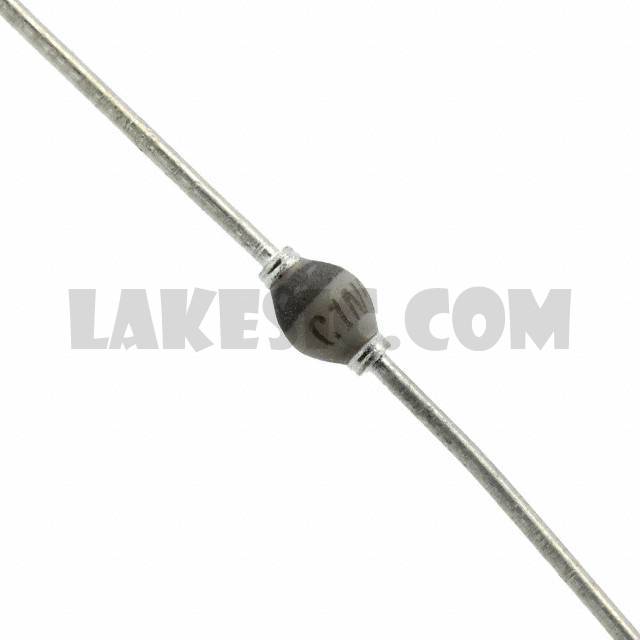

Package / Case	SOD-88A, Axial
Supplier Device Package	GPR-1A
Operating Temperature - Junction	-65°C ~ 175°C
