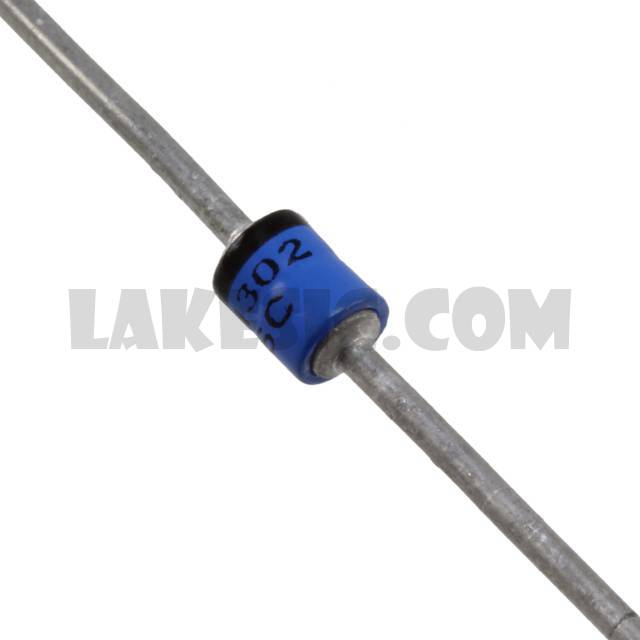

1N5420

1N5420

Part Number1N5420

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 600V 3A AXIAL

Datasheet1N5415 - 20

Package / CaseB, Axial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 600V 3A Through Hole B, Axial

To learn about the specification of 1N5420, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 1N5420 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 1N5420.
We are offering 1N5420 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

1N5420 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N5415 - 20
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	1.5V @ 9A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	400ns
Current - Reverse Leakage @ Vr	1µA @ 600V
Capacitance @ Vr, F	-
Mounting Type	Through Hole
Package / Case	B, Axial
Supplier Device Package	B, Axial
Operating Temperature - Junction	-65°C ~ 175°C
