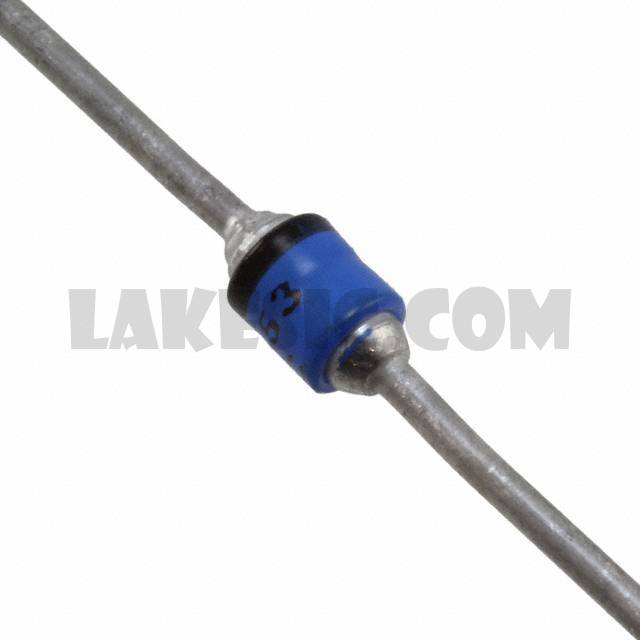

1N5553

1N5553

Part Number1N5553

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 800V 3A AXIAL

Datasheet1N5550-54

Package / CaseB, Axial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 800V 3A Through Hole

To learn about the specification of 1N5553, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 1N5553 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 1N5553.
We are offering 1N5553 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

1N5553 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N5550-54
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	800V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	1.2V @ 9A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	2µs
Current - Reverse Leakage @ Vr	1µA @ 800V
Capacitance @ Vr, F	-
Mounting Type	Through Hole
Package / Case	B, Axial
Supplier Device Package	-
Operating Temperature - Junction	-65°C ~ 175°C
