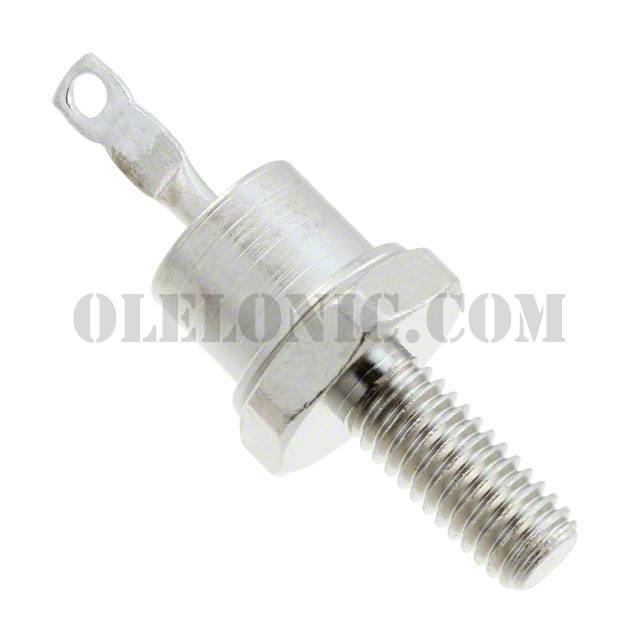

1N5812

Part Number1N5812

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 50V 20A DO203AA

Datasheet1N5812(R),1N5814-16(R)

Package / CaseDO-203AA, DO-4, Stud

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 50V 20A Stud Mount DO-203AA

To learn about the specification of 1N5812, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 1N5812 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 1N5812.
We are offering 1N5812 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

1N5812 - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Single

Datasheet

1N5812(R),1N5814-16(R)

Standard Package

Manufacturer

Microsemi Corporation

Series

Packaging

Bulk

Part Status

Active

Diode Type

Standard

Voltage - DC Reverse (Vr) (Max)

50V

Current - Average Rectified (Io)

20A

Voltage - Forward (Vf) (Max) @ If

950mV @ 20A

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Reverse Recovery Time (trr)

15ns

Current - Reverse Leakage @ Vr

10µA @ 50V

Capacitance @ Vr, F

300pF @ 10V, 1MHz

Mounting Type

Stud Mount

Package / Case

DO-203AA, DO-4, Stud

Supplier Device Package

DO-203AA

Operating Temperature - Junction

-65°C ~ 175°C
