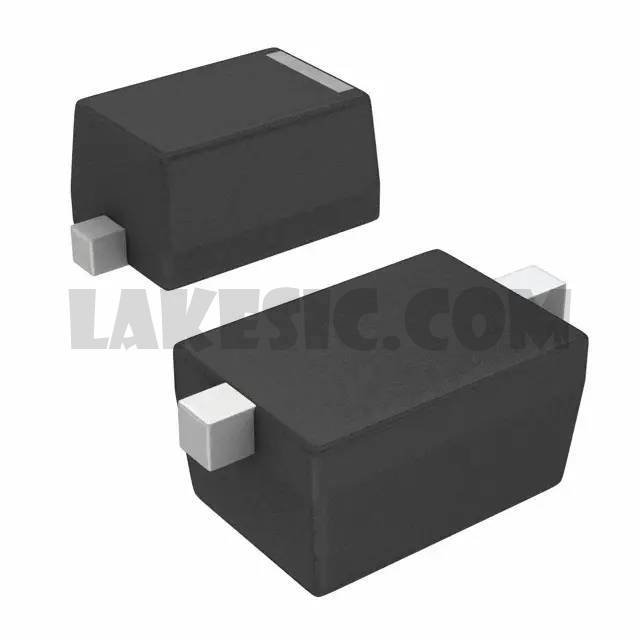

1N914BWT

1N914BWT

Part Number1N914BWT

ManufacturerON Semiconductor

DescriptionDIODE GEN PURP 75V 200MA SOD523F

Datasheet1N4148WT, 1N4448WT, 1N914BWT Datasheet

Package / CaseSC-79, SOD-523F

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 75V 200mA Surface Mount SOD-523F

To learn about the specification of 1N914BWT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 1N914BWT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 1N914BWT.
We are offering 1N914BWT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

1N914BWT - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N4148WT, 1N4448WT, 1N914BWT Datasheet
Standard Package	8000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	75V
Current - Average Rectified (Io)	200mA
Voltage - Forward (Vf) (Max) @ If	1V @ 100mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	4ns
Current - Reverse Leakage @ Vr	5µA @ 75V
Capacitance @ Vr, F	4pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	SC-79, SOD-523F
Supplier Device Package	SOD-523F
Operating Temperature - Junction	-55°C ~ 150°C
Base Part Number	1N914BW
