1SS309(TE85L,F)

Part Number1SS309(TE85L,F)

ManufacturerToshiba Semiconductor and Storage

DescriptionDIODE ARRAY GP 80V 100MA SMV

Datasheet1SS309

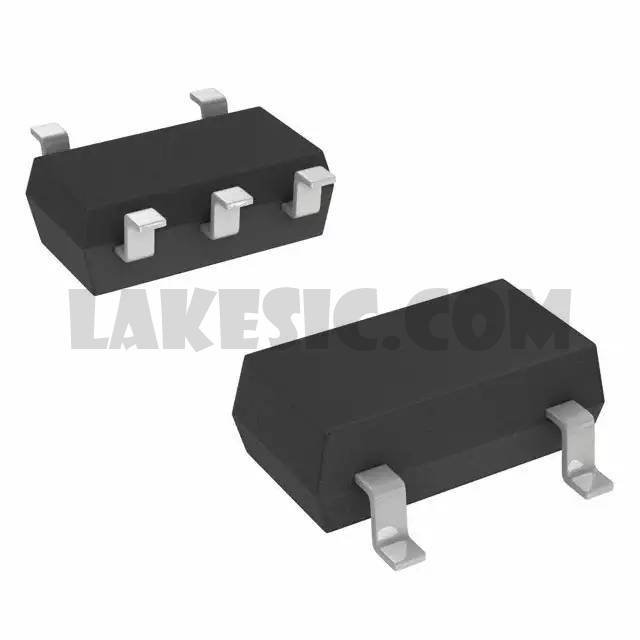

Package / CaseSC-74A, SOT-753

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 4 Common Cathode Standard 80V 100mA Surface Mount SC-74A, SOT-753

To learn about the specification of 1SS309(TE85L,F), please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 1SS309(TE85L,F) with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 1SS309(TE85L,F).
We are offering 1SS309(TE85L,F) for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

1SS309(TE85L,F) - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	1SS309
Standard Package	1
Manufacturer	Toshiba Semiconductor and Storage
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Configuration	4 Common Cathode
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	80V
Current - Average Rectified (Io) (per Diode)	100mA
Voltage - Forward (Vf) (Max) @ If	1.2V @ 100mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	4ns
Current - Reverse Leakage @ Vr	500nA @ 80V
Operating Temperature - Junction	125°C (Max)
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Supplier Device Package	SMV
Base Part Number	1SS309
