Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1SS389-G
Standard Package	3000
Manufacturer	Comchip Technology
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	10V
Current - Average Rectified (Io)	100mA (DC)
Voltage - Forward (Vf) (Max) @ If	500mV @ 100mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	20µA @ 10V
Capacitance @ Vr, F	40pF @ 0V, 1MHz
Mounting Type	Surface Mount

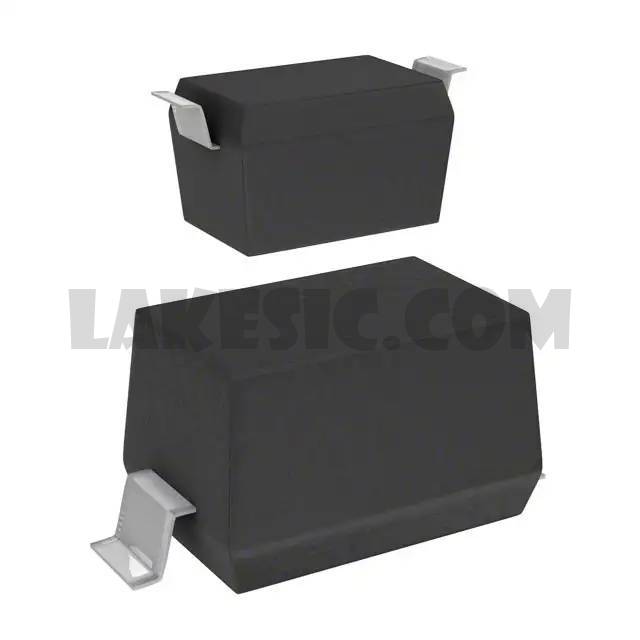

Package / Case	SC-79, SOD-523
Supplier Device Package	SOD-523
Operating Temperature - Junction	-40°C ~ 100°C
