Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1SS401
Standard Package	3000
Manufacturer	Toshiba Semiconductor and Storage
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	20V
Current - Average Rectified (Io)	300mA
Voltage - Forward (Vf) (Max) @ If	450mV @ 300mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	50µA @ 20V
Capacitance @ Vr, F	46pF @ 0V, 1MHz
Mounting Type	Surface Mount

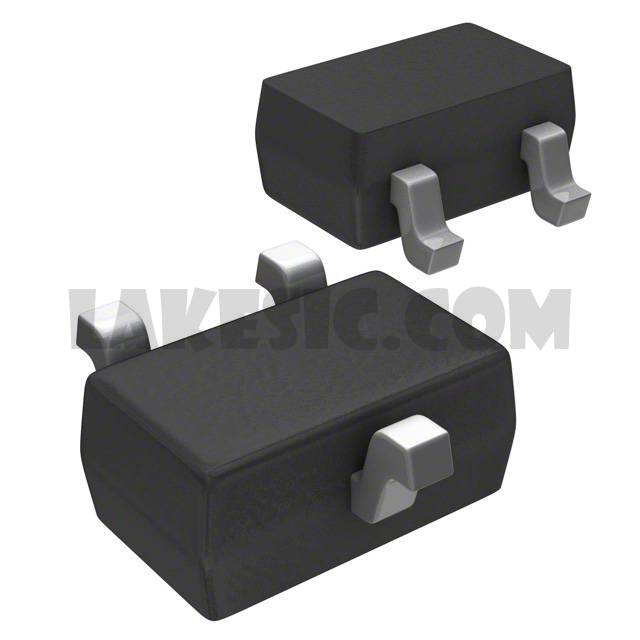

Package / Case	SC-70, SOT-323
Supplier Device Package	SC-70
Operating Temperature - Junction	125°C (Max)

CDC7630-000	Skyworks Solutions Inc., RF Diode Schottky - Single 2V 100mA 75mW Chip,	View
CUHS20F40,H3F	Toshiba Semiconductor and Storage, Diode Schottky 40V 2A Surface Mount US2H,	View
CTS05S30,L3F	Toshiba Semiconductor and Storage, Diode Schottky 30V 500mA Surface Mount CST2,	View
1SS416CT,L3F	Toshiba Semiconductor and Storage, Diode Schottky 30V 100mA Surface Mount fSC,	View
SMS7621-005LF	Skyworks Solutions Inc., RF Diode Schottky - 1 Pair Series Connection 2V 50mA 75mW SOT-23-3,	View
CTS05S40,L3F	Toshiba Semiconductor and Storage, Diode Schottky 40V 500mA Surface Mount CST2,	View
SMS7621-006LF	Skyworks Solutions Inc., RF Diode Schottky - 1 Pair Series Connection 2V 50mA 75mW SOT-23-3,	View
CTS520,L3F	Toshiba Semiconductor and Storage, Diode Schottky 30V 200mA Surface Mount CST2,	View
CMS11(TE12L,Q,M)	Toshiba Semiconductor and Storage, Diode Schottky 40V 2A Surface Mount M-FLAT (2.4x3.8),	View
CUHS20S40,H3F	Toshiba Semiconductor and Storage, Diode Schottky 40V 2A Surface Mount US2H,	View
CCS15S30,L3F	Toshiba Semiconductor and Storage, Diode Schottky 20V 1.5A Surface Mount CST2C,	View
MMBD353LT1G	ON Semiconductor, RF Diode Schottky - 1 Pair Series Connection 7V 225mW SOT-23-3 (TO-236),	View

1SS401(TE85L,F)

Part Number1SS401(TE85L,F)
