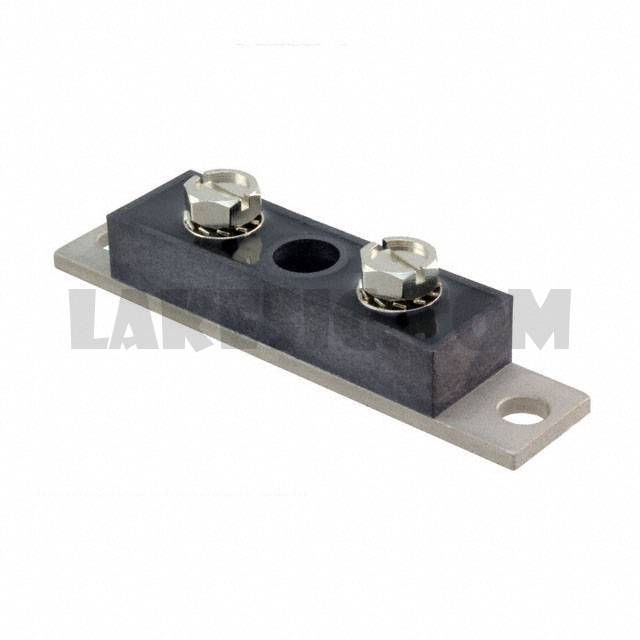

201CNQ045

Part Number201CNQ045

ManufacturerSMC Diode Solutions

DescriptionDIODE SCHOTTKY 45V 100A PRM4

Datasheet201CNQ035, 040, 045, 050

Package / CasePRM4

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Schottky 45V 100A Chassis Mount PRM4

To learn about the specification of 201CNQ045, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 201CNQ045 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 201CNQ045.
We are offering 201CNQ045 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

201CNQ045 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	201CNQ035, 040, 045, 050
Standard Package	9
Manufacturer	SMC Diode Solutions
Series	-
Packaging	Bulk
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	45V
Current - Average Rectified (Io) (per Diode)	100A
Voltage - Forward (Vf) (Max) @ If	670mV @ 100A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	10mA @ 45V
Operating Temperature - Junction	-55°C ~ 175°C
Mounting Type	Chassis Mount
Package / Case	PRM4
Supplier Device Package	PRM4 (Non-Isolated)
