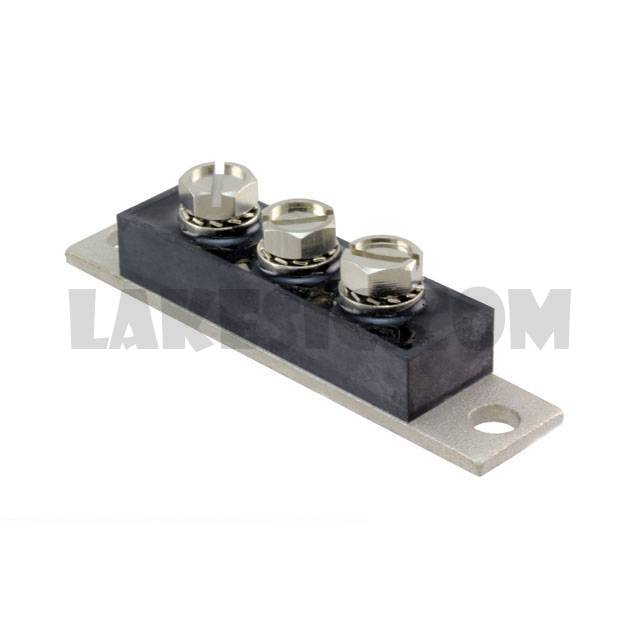

206CMQ200

Part Number206CMQ200

ManufacturerSMC Diode Solutions

DescriptionDIODE SCHOTTKY 200V 100A PRM4

Datasheet206CMQ200

Package / CasePRM4

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Schottky 200V 100A Chassis Mount PRM4

To learn about the specification of 206CMQ200, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 206CMQ200 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 206CMQ200.
We are offering 206CMQ200 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

206CMQ200 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	206CMQ200
Standard Package	9
Manufacturer	SMC Diode Solutions
Series	-
Packaging	Bulk
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io) (per Diode)	100A
Voltage - Forward (Vf) (Max) @ If	860mV @ 100A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	10mA @ 200V
Operating Temperature - Junction	-55°C ~ 175°C
Mounting Type	Chassis Mount
Package / Case	PRM4
Supplier Device Package	PRM4 (Isolated)
