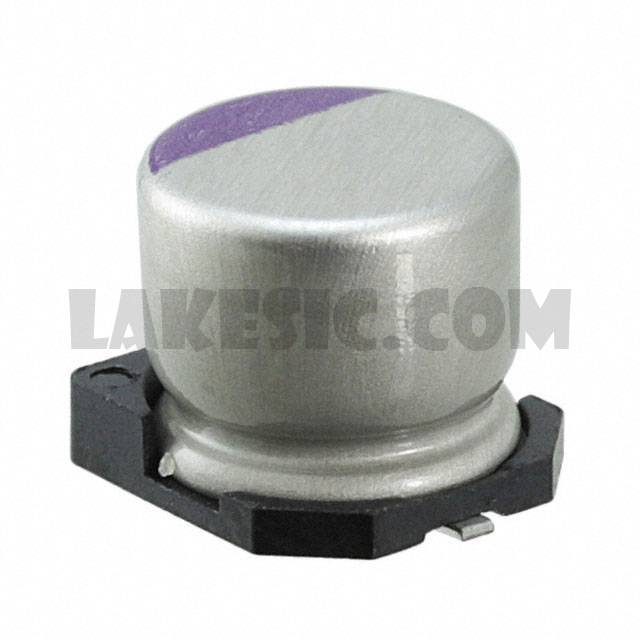

20SVP10M

Part Number20SVP10M

ManufacturerPanasonic Electronic Components

DescriptionCAP ALUM POLY 10UF 20% 20V SMD

Datasheet20SVP10M View All Specifications

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description10µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 120mOhm 2000 Hrs @ 105°C

To learn about the specification of 20SVP10M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 20SVP10M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 20SVP10M.
We are offering 20SVP10M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

20SVP10M - Product Attributes

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	20SVP10M View All Specifications
Standard Package	1500
Manufacturer	Panasonic Electronic Components
Series	OS-CON™, SVP
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Polymer
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	20V
ESR (Equivalent Series Resistance)	120mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	51mA @ 120Hz
Ripple Current @ High Frequency	1.02A @ 100kHz
Lead Spacing	-
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
