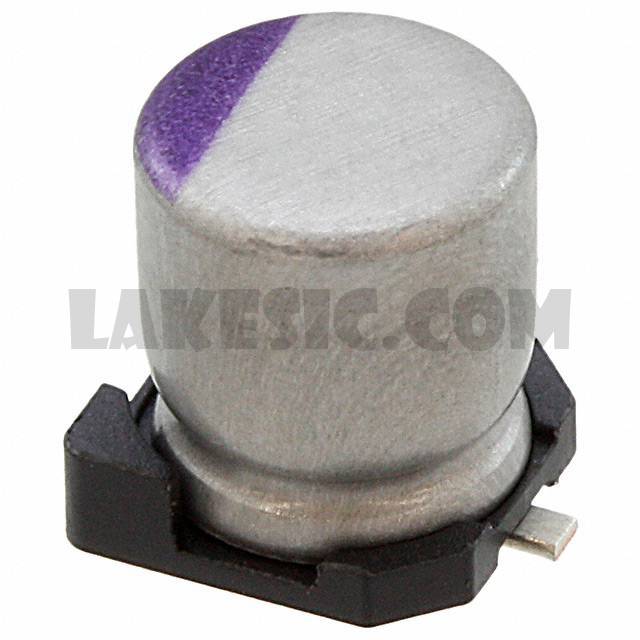

20SVPF56MX

Part Number20SVPF56MX

ManufacturerPanasonic Electronic Components

DescriptionCAP ALUM POLY 56UF 20% 20V SMD

Datasheet20SVPF56MX View All Specifications

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description56µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 30mOhm 5000 Hrs @ 105°C

To learn about the specification of 20SVPF56MX, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 20SVPF56MX with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 20SVPF56MX.
We are offering 20SVPF56MX for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

20SVPF56MX - Product Attributes

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	20SVPF56MX View All Specifications
Standard Package	1500
Manufacturer	Panasonic Electronic Components
Series	OS-CON™, SVPF
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Polymer
Capacitance	56µF
Tolerance	±20%
Voltage - Rated	20V
ESR (Equivalent Series Resistance)	30mOhm
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	140mA @ 120Hz
Ripple Current @ High Frequency	2.8A @ 100kHz
Lead Spacing	-
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
