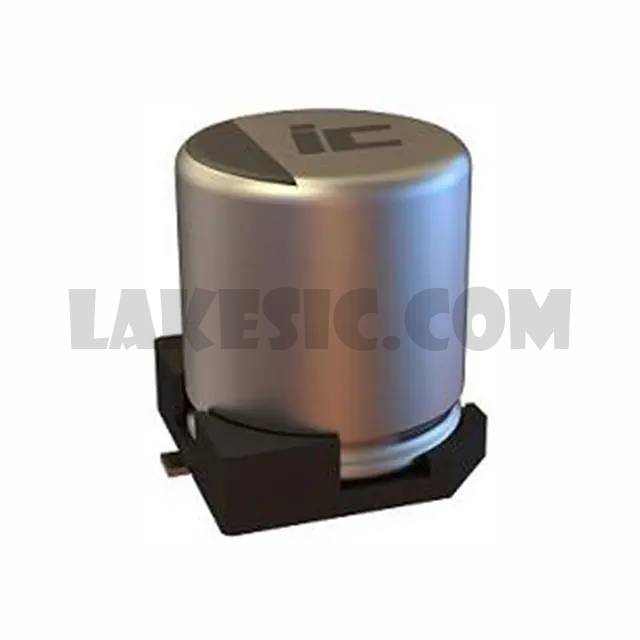

226SMH016M

Part Number226SMH016M

ManufacturerIllinois Capacitor

DescriptionCAP ALUM 22UF 20% 16V SMD

DatasheetSMH Series Datasheet

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 15.07Ohm @ 120Hz 1000 Hrs @ 105°C

To learn about the specification of 226SMH016M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 226SMH016M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 226SMH016M.
We are offering 226SMH016M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

226SMH016M - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	SMH Series Datasheet
Standard Package	1
Manufacturer	Illinois Capacitor
Series	SMH
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	15.07Ohm @ 120Hz
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	39mA @ 120Hz
Ripple Current @ High Frequency	58.5mA @ 100kHz
Lead Spacing	-
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.217" (5.50mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
