Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	2300 Series
Standard Package	1
Manufacturer	Murata Power Solutions Inc.
Series	2300
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	-
Inductance	4.7µH
Tolerance	-
Current Rating (Amps)	1.6A
Current - Saturation	-
Shielding	Shielded
DC Resistance (DCR)	44mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 85°C
Inductance Frequency - Test	1kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.244" L x 0.220" W (6.20mm x 5.60mm)
Height - Seated (Max)	0.126" (3.20mm)

2311-V-RC	Bourns Inc., 68µH Unshielded Toroidal Inductor 7.7A 30mOhm Max Radial, Vertical (Open), 2300	View
2313-H-RC	Bourns Inc., 120µH Unshielded Toroidal Inductor 6.7A 40mOhm Max Radial, Horizontal (Open), 2300	View
2321-H-RC	Bourns Inc., 560µH Unshielded Toroidal Inductor 3.6A 140mOhm Max Radial, Horizontal (Open), 2300	View
23S100C	Murata Power Solutions Inc., 10µH Shielded Wirewound Inductor 1.18A 87mOhm Max Nonstandard, 2300	View
2302-V-RC	Bourns Inc., 12µH Unshielded Toroidal Inductor 19.1A 5mOhm Max Radial, Vertical (Open), 2300	View
2316-H-RC	Bourns Inc., 220µH Unshielded Toroidal Inductor 5.8A 54mOhm Max Radial, Horizontal (Open), 2300	View
2301-V-RC	Bourns Inc., 10µH Unshielded Toroidal Inductor 20A 5mOhm Max Radial, Vertical (Open), 2300	View
2311-H-RC	Bourns Inc., 68µH Unshielded Toroidal Inductor 7.7A 30mOhm Max Radial, Horizontal (Open), 2300	View
2319-H-RC	Bourns Inc., 390µH Unshielded Toroidal Inductor 5A 72mOhm Max Radial, Horizontal (Open), 2300	View
23100C	Murata Power Solutions Inc., 10µH Unshielded Wirewound Inductor 1.02A 138mOhm Max Nonstandard, 2300	View
234R7C	Murata Power Solutions Inc., 4.7µH Unshielded Wirewound Inductor 1.48A 68mOhm Max Nonstandard, 2300	View
2324-V-RC	Bourns Inc., 1mH Unshielded Toroidal Inductor 2.4A 300mOhm Max Radial, Vertical (Open), 2300	View

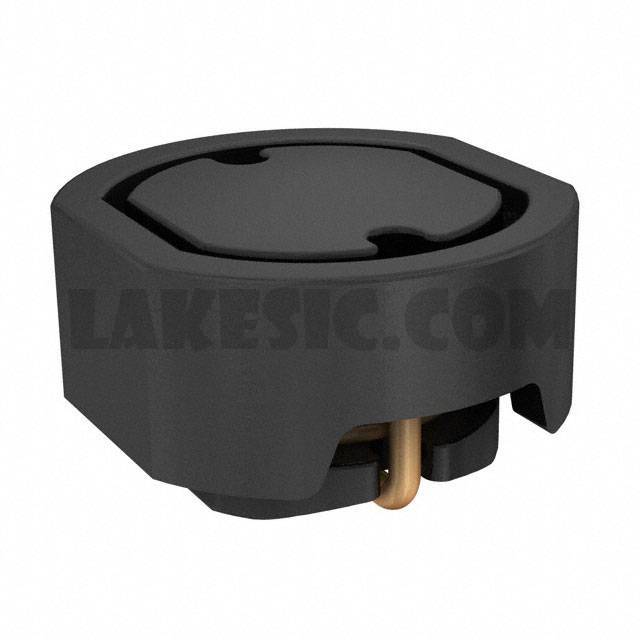

23S4R7C

Part Number23S4R7C
