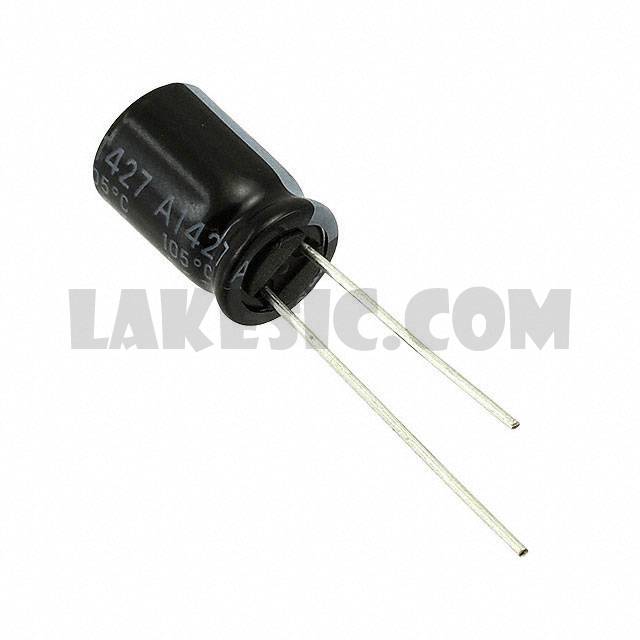

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ZLS Series
Standard Package	2000
Manufacturer	Rubycon
Series	ZLS
Packaging	Bulk
Part Status	Active
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	6000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	495mA @ 120Hz
Ripple Current @ High Frequency	900mA @ 100kHz
Impedance	62 mOhms
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

25ZLS1000MEFC10X20	Rubycon, 1000µF 25V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
16ZLS3300MEFC12.5X30	Rubycon, 3300µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
10ZLS5600MEFC12.5X35	Rubycon, 5600µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
10ZLS3300MEFC12.5X20	Rubycon, 3300µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
16ZLS680MEFC8X16	Rubycon, 680µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
35ZLS470MEFC10X16	Rubycon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
10ZLS1000MEFC8X16	Rubycon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
16ZLS3900MEFC12.5X35	Rubycon, 3900µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
25ZLS330MEFC8X11.5	Rubycon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
35ZLS330MEFC10X12.5	Rubycon, 330µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
25ZLS1500MEFC12.5X20	Rubycon, 1500µF 25V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
16ZLS470MEFC8X11.5	Rubycon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View

25ZLS330MEFC8X11.5

Part Number25ZLS330MEFC8X11.5
