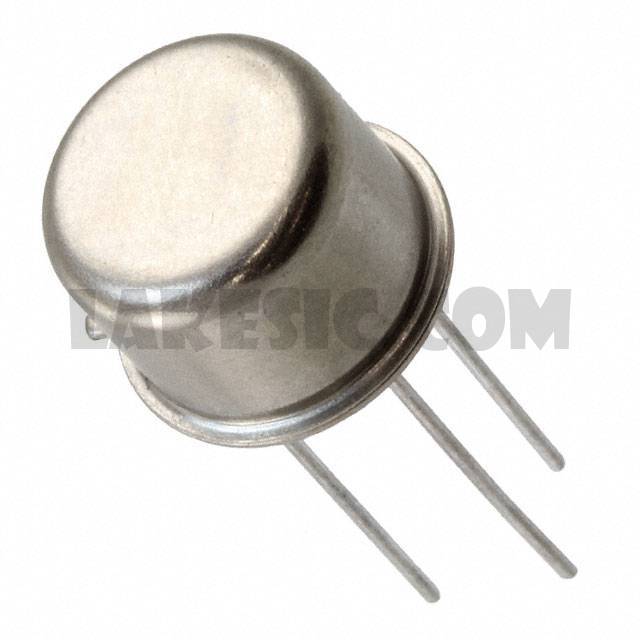

2N3019

2N3019

Part Number2N3019

ManufacturerMicrosemi Corporation

DescriptionTRANS NPN 80V 1A TO-5

Datasheet2N3019

Package / CaseTO-205AA, TO-5-3 Metal Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 80V 1A 800mW Through Hole TO-5

To learn about the specification of 2N3019, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2N3019 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2N3019.
We are offering 2N3019 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2N3019 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2N3019
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	1A
Voltage - Collector Emitter Breakdown (Max)	80V
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	50 @ 500mA, 10V
Power - Max	800mW
Frequency - Transition	-
Operating Temperature	-65°C ~ 200°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-205AA, TO-5-3 Metal Can
Supplier Device Package	TO-5
