2N3501
2N3501
Part Number 2N3501
Description TRANS NPN 150V 0.3A TO-39

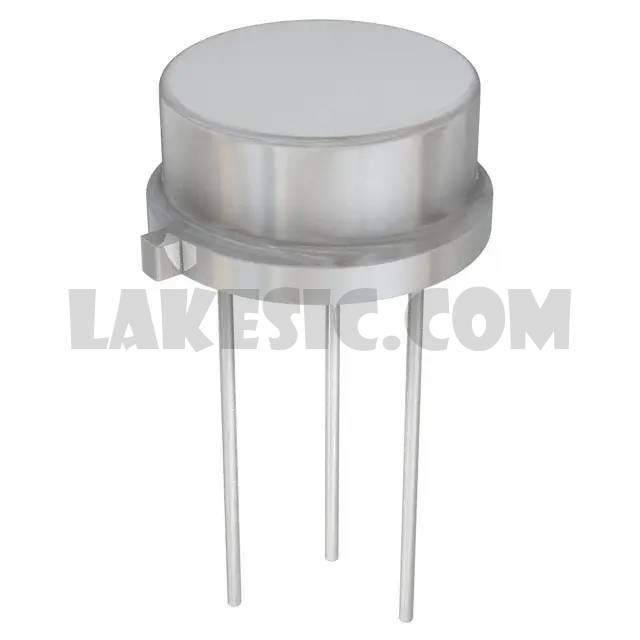

Package / Case TO-205AD, TO-39-3 Metal Can
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description Bipolar (BJT) Transistor NPN 150V 300mA 1W Through Hole TO-39 (TO-205AD)
To learn about the specification of 2N3501, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2N3501 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2N3501.
We are offering 2N3501 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
2N3501 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet 2N3498 - 2N3501
Standard Package 1
Manufacturer Microsemi Corporation
Series -
Packaging Bulk
Part Status Active
Transistor Type NPN
Current - Collector (Ic) (Max) 300mA
Voltage - Collector Emitter Breakdown (Max) 150V
Vce Saturation (Max) @ Ib, Ic 400mV @ 15mA, 150mA
Current - Collector Cutoff (Max) 10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 150mA, 10V
Power - Max 1W
Frequency - Transition -
Operating Temperature -65°C ~ 200°C (TJ)
Mounting Type Through Hole
Package / Case TO-205AD, TO-39-3 Metal Can
Supplier Device Package TO-39 (TO-205AD)
