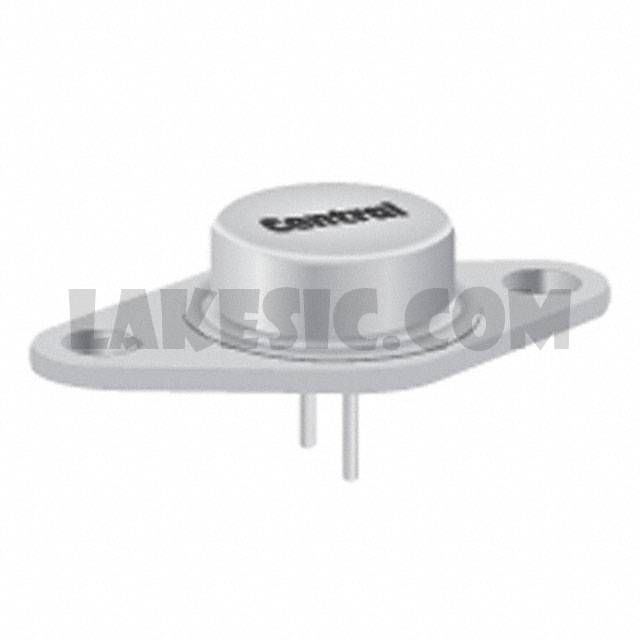

2N3583

2N3583

Part Number2N3583

ManufacturerCentral Semiconductor Corp

DescriptionTRANS NPN 175V 1A TO-66

Datasheet2N3583 thru 2N3585

Package / CaseTO-213AA, TO-66-2

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 175V 1A 10MHz 35W Through Hole TO-66

To learn about the specification of 2N3583, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2N3583 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2N3583.
We are offering 2N3583 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2N3583 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2N3583 thru 2N3585
Standard Package	30
Manufacturer	Central Semiconductor Corp
Series	-
Packaging	Tube
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	1A
Voltage - Collector Emitter Breakdown (Max)	175V
Vce Saturation (Max) @ Ib, Ic	5V @ 125mA, 1A
Current - Collector Cutoff (Max)	10mA
DC Current Gain (hFE) (Min) @ Ic, Vce	40 @ 500mA, 10V
Power - Max	35W
Frequency - Transition	10MHz
Operating Temperature	-65°C ~ 200°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-213AA, TO-66-2
Supplier Device Package	TO-66
