2N3906-AP

2N3906-AP

Part Number2N3906-AP

ManufacturerMicro Commercial Co

DescriptionTRANS PNP 40V 0.2A TO92

Datasheet2N3906 Datasheet

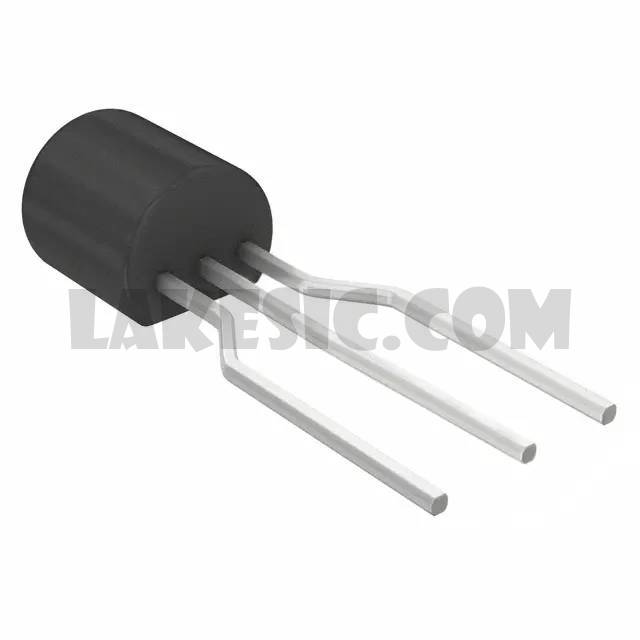

Package / CaseTO-226-3, TO-92-3 (TO-226AA) (Formed Leads)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 40V 200mA 250MHz 600mW Through Hole TO-92

To learn about the specification of 2N3906-AP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2N3906-AP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2N3906-AP.
We are offering 2N3906-AP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2N3906-AP - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2N3906 Datasheet
Standard Package	2000
Manufacturer	Micro Commercial Co
Series	-
Packaging	Tape & Box (TB)
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	200mA
Voltage - Collector Emitter Breakdown (Max)	40V
Vce Saturation (Max) @ Ib, Ic	400mV @ 5mA, 50mA
Current - Collector Cutoff (Max)	-
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 10mA, 1V
Power - Max	600mW
Frequency - Transition	250MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package	TO-92
Base Part Number	2N3906
