2N3906-G


2N3906-G

Part Number2N3906-G

Manufacturer

Description

Datasheet

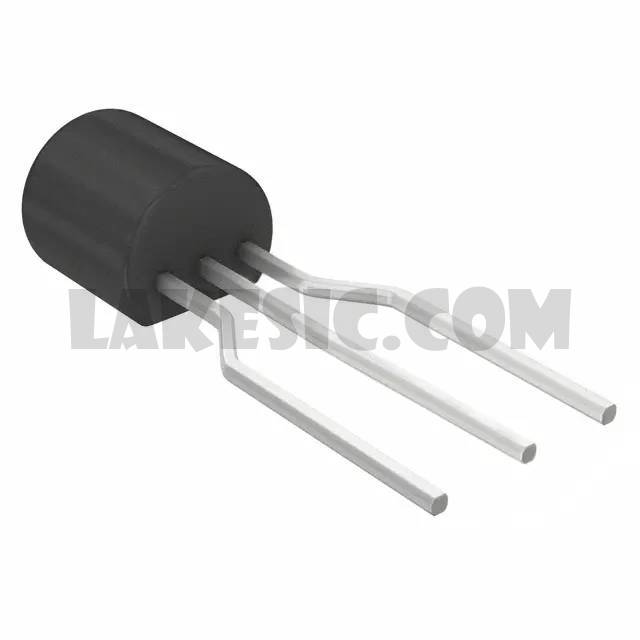

Package / CaseTO-226-3, TO-92-3 (TO-226AA) (Formed Leads)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

2N3906-G - Product Attributes

Categories Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet
Standard Package1000
ManufacturerComchip Technology
Series-
PackagingBag
Part StatusActive
Transistor TypePNP
Current - Collector (Ic) (Max)200mA
Voltage - Collector Emitter Breakdown (Max)40V
Vce Saturation (Max) @ Ib, Ic400mV @ 5mA, 50mA
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce30 @ 100mA, 1V
Frequency - Transition250MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device PackageTO-92
