2N7002DW

2N7002DW

Part Number2N7002DW

ManufacturerON Semiconductor

DescriptionMOSFET 2N-CH 60V 0.115A SC70-6

Datasheet2N7002DW Datasheet

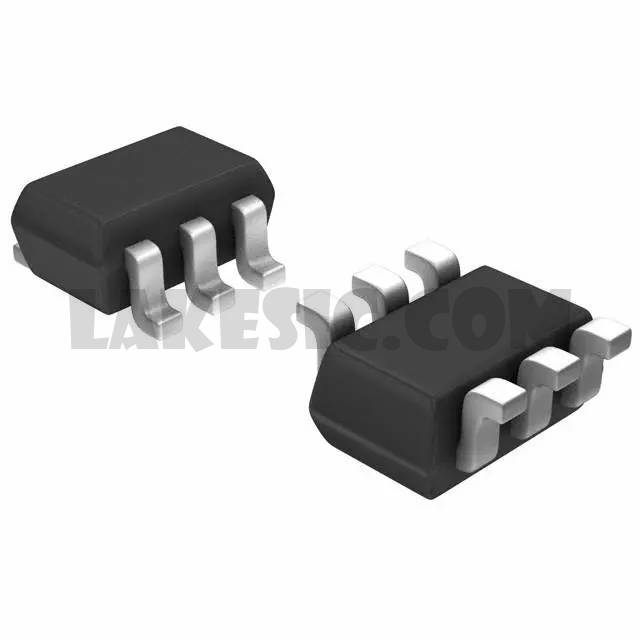

Package / Case6-TSSOP, SC-88, SOT-363

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 60V 115mA 200mW Surface Mount SC-88 (SC-70-6)

To learn about the specification of 2N7002DW, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2N7002DW with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2N7002DW.
We are offering 2N7002DW for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2N7002DW - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	2N7002DW Datasheet
Standard Package	3000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	115mA
Rds On (Max) @ Id, Vgs	7.5Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	50pF @ 25V
Power - Max	200mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-TSSOP, SC-88, SOT-363
Supplier Device Package	SC-88 (SC-70-6)
