2SA1694

2SA1694

Part Number2SA1694

ManufacturerSanken

DescriptionTRANS PNP 120V 8A TO3P

Datasheet2SA1694

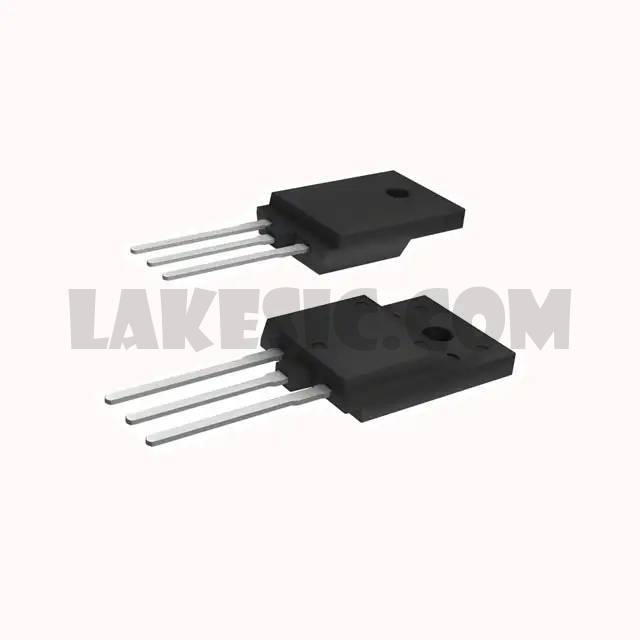

Package / CaseTO-3P-3 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 120V 8A 20MHz 80W Through Hole TO-3P

To learn about the specification of 2SA1694, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SA1694 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SA1694.
We are offering 2SA1694 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SA1694 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2SA1694
Standard Package	30
Manufacturer	Sanken
Series	-
Packaging	Tube
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	8A
Voltage - Collector Emitter Breakdown (Max)	120V
Vce Saturation (Max) @ Ib, Ic	1.5V @ 300mA, 3A
Current - Collector Cutoff (Max)	10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	50 @ 3A, 4V
Power - Max	80W
Frequency - Transition	20MHz
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-3P-3 Full Pack
Supplier Device Package	TO-3P
