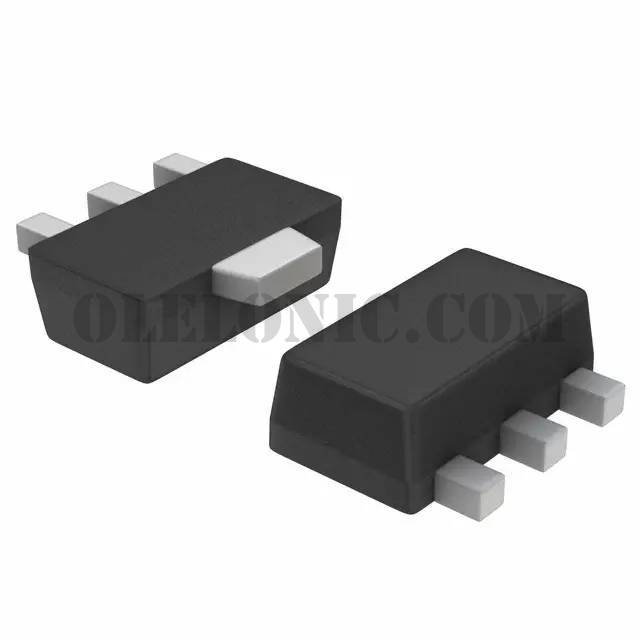

2SA2016-TD-E

2SA2016-TD-E

Part Number2SA2016-TD-E

ManufacturerON Semiconductor

DescriptionTRANS PNP 50V 7A SOT89-3

Datasheet2SA2016/2SC5569

Package / CaseTO-243AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 50V 7A 330MHz 3.5W Surface Mount PCP

To learn about the specification of 2SA2016-TD-E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SA2016-TD-E with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SA2016-TD-E.
We are offering 2SA2016-TD-E for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SA2016-TD-E - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2SA2016/2SC5569
Standard Package	1000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	7A
Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	400mV @ 40mA, 2A
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 500mA, 2V
Power - Max	3.5W
Frequency - Transition	330MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-243AA
Supplier Device Package	PCP
