2SA2018TL


2SA2018TL

Part Number2SA2018TL

Manufacturer

Description

Datasheet

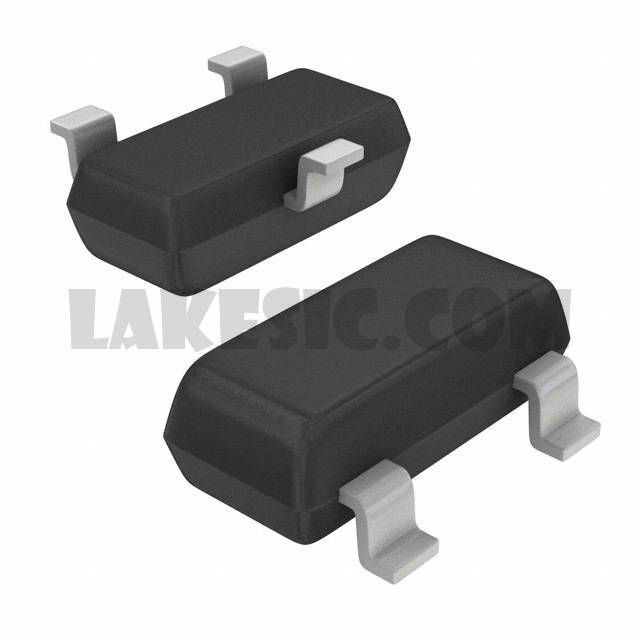

Package / CaseSC-75, SOT-416

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

2SA2018TL - Product Attributes

Categories Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet
Standard Package3000
ManufacturerRohm Semiconductor
Series-
PackagingTape & Reel (TR)
Part StatusActive
Transistor TypePNP
Current - Collector (Ic) (Max)500mA
Voltage - Collector Emitter Breakdown (Max)12V
Vce Saturation (Max) @ Ib, Ic250mV @ 10mA, 200mA
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce270 @ 10mA, 2V
Power - Max150mW
Frequency - Transition260MHz
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-75, SOT-416
Supplier Device PackageEMT3
Base Part Number2SA2018
