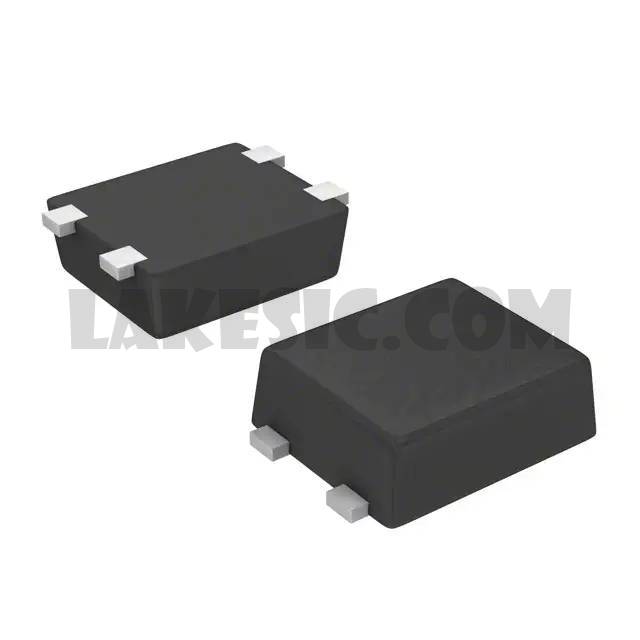

2SA2029M3T5G

2SA2029M3T5G

Part Number2SA2029M3T5G

ManufacturerON Semiconductor

DescriptionTRANS PNP GP 50V 100MA SOT-723

Datasheet2SA2029M3T5G

Package / CaseSOT-723

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 50V 100mA 140MHz 265mW Surface Mount SOT-723

To learn about the specification of 2SA2029M3T5G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SA2029M3T5G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SA2029M3T5G.
We are offering 2SA2029M3T5G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SA2029M3T5G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2SA2029M3T5G
Standard Package	8000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	100mA
Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	500mV @ 5mA, 50mA
Current - Collector Cutoff (Max)	500pA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	120 @ 1mA, 6V
Power - Max	265mW
Frequency - Transition	140MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-723
Supplier Device Package	SOT-723
