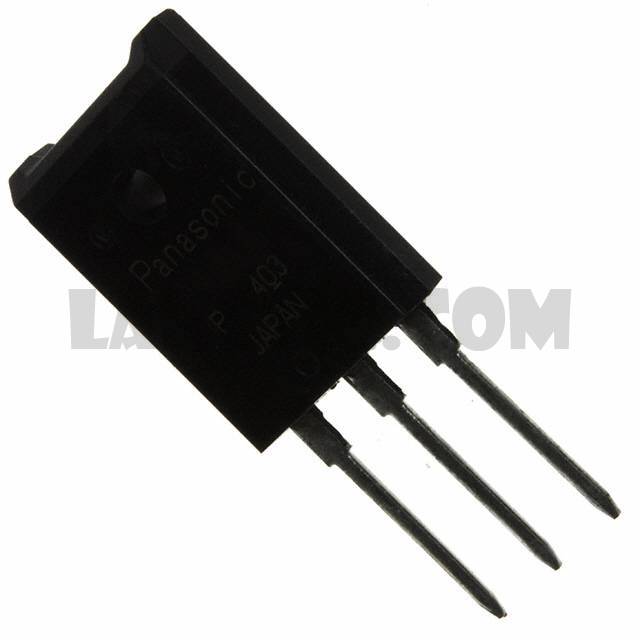

2SB10540P

Part Number2SB10540P

ManufacturerPanasonic Electronic Components

DescriptionTRANS PNP 100V 5A TOP-3F

Datasheet2SB1054 Datasheet

Package / CaseTOP-3F

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 100V 5A 20MHz 3W Through Hole TOP-3F-A1

To learn about the specification of 2SB10540P, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SB10540P with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SB10540P.
We are offering 2SB10540P for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SB10540P - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2SB1054 Datasheet

Standard Package

Manufacturer

Panasonic Electronic Components

Series

Packaging

Bulk

Part Status

Obsolete

Transistor Type

PNP

Current - Collector (Ic) (Max)

Voltage - Collector Emitter Breakdown (Max)

100V

Vce Saturation (Max) @ Ib, Ic

2V @ 300mA, 3A

Current - Collector Cutoff (Max)

50µA (ICBO)

DC Current Gain (hFE) (Min) @ Ic, Vce

100 @ 1A, 5V

Power - Max

Frequency - Transition

20MHz

Operating Temperature

150°C (TJ)

Mounting Type

Through Hole

Package / Case

TOP-3F

Supplier Device Package

TOP-3F-A1
