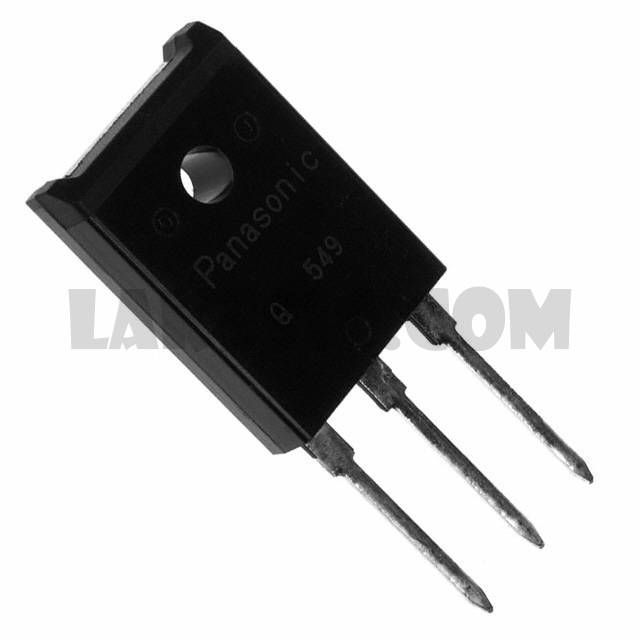

2SB11540Q

Part Number2SB11540Q

ManufacturerPanasonic Electronic Components

DescriptionTRANS PNP 80V 10A TOP-3F

Datasheet2SB1154 Datasheet

Package / CaseTOP-3F

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 80V 10A 30MHz 3W Through Hole TOP-3F-A1

To learn about the specification of 2SB11540Q, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SB11540Q with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SB11540Q.
We are offering 2SB11540Q for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SB11540Q - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2SB1154 Datasheet

Standard Package

Manufacturer

Panasonic Electronic Components

Series

Packaging

Bulk

Part Status

Obsolete

Transistor Type

PNP

Current - Collector (Ic) (Max)

10A

Voltage - Collector Emitter Breakdown (Max)

80V

Vce Saturation (Max) @ Ib, Ic

1.5V @ 1A, 10A

Current - Collector Cutoff (Max)

10µA (ICBO)

DC Current Gain (hFE) (Min) @ Ic, Vce

90 @ 3A, 2V

Power - Max

Frequency - Transition

30MHz

Operating Temperature

150°C (TJ)

Mounting Type

Through Hole

Package / Case

TOP-3F

Supplier Device Package

TOP-3F-A1
