2SB11560P

Part Number2SB11560P

ManufacturerPanasonic Electronic Components

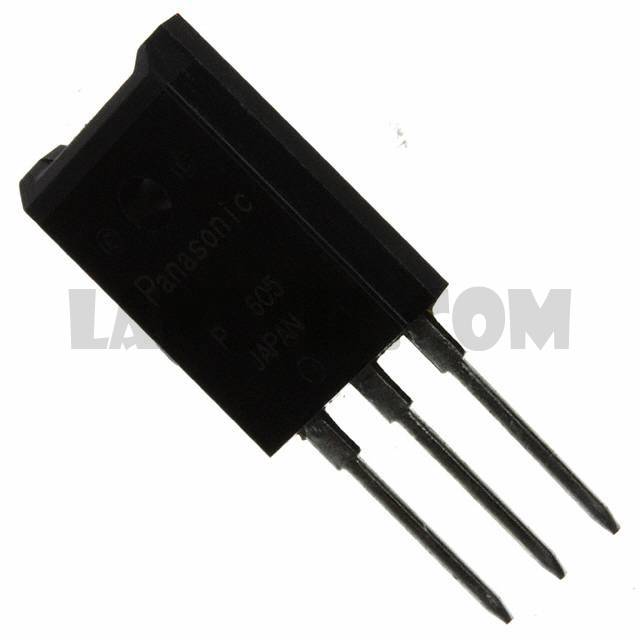

DescriptionTRANS PNP 80V 20A TOP-3F

Datasheet2SB1156 Datasheet

Package / CaseTOP-3F

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 80V 20A 30MHz 3W Through Hole TOP-3F-A1

To learn about the specification of 2SB11560P, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SB11560P with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SB11560P.
We are offering 2SB11560P for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SB11560P - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2SB1156 Datasheet

Standard Package

Manufacturer

Panasonic Electronic Components

Series

Packaging

Bulk

Part Status

Obsolete

Transistor Type

PNP

Current - Collector (Ic) (Max)

20A

Voltage - Collector Emitter Breakdown (Max)

80V

Vce Saturation (Max) @ Ib, Ic

1.5V @ 2A, 20A

Current - Collector Cutoff (Max)

10µA (ICBO)

DC Current Gain (hFE) (Min) @ Ic, Vce

130 @ 3A, 2V

Power - Max

Frequency - Transition

30MHz

Operating Temperature

150°C (TJ)

Mounting Type

Through Hole

Package / Case

TOP-3F

Supplier Device Package

TOP-3F-A1
