2SB1258

2SB1258

Part Number2SB1258

ManufacturerSanken

DescriptionTRANS PNP DARL 100V 6A TO220F

Datasheet2SB1258

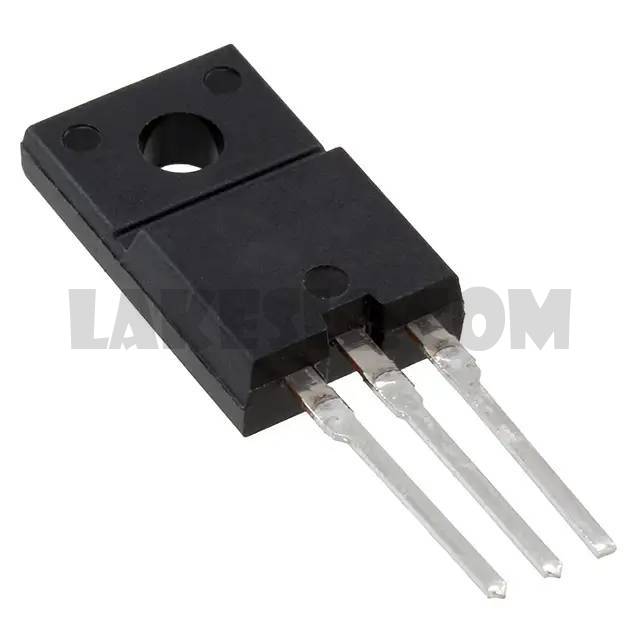

Package / CaseTO-220-3 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP - Darlington 100V 6A 100MHz 30W Through Hole TO-220F

To learn about the specification of 2SB1258, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SB1258 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SB1258.
We are offering 2SB1258 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SB1258 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2SB1258
Standard Package	50
Manufacturer	Sanken
Series	-
Packaging	Bulk
Part Status	Active
Transistor Type	PNP - Darlington
Current - Collector (Ic) (Max)	6A
Voltage - Collector Emitter Breakdown (Max)	100V
Vce Saturation (Max) @ Ib, Ic	1.5V @ 6mA, 3A
Current - Collector Cutoff (Max)	10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	1000 @ 3A, 2V
Power - Max	30W
Frequency - Transition	100MHz
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack
Supplier Device Package	TO-220F
