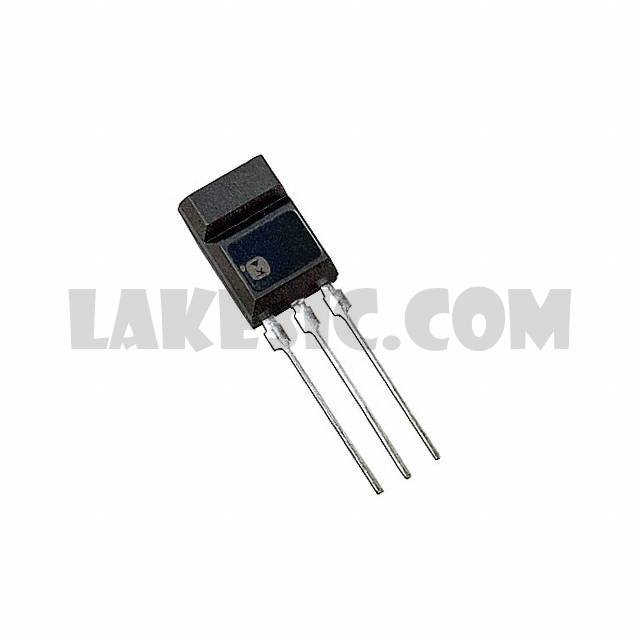

2SB14140RA

Part Number2SB14140RA

ManufacturerPanasonic Electronic Components

DescriptionTRANS PNP 150V 1A MT-3

Datasheet2SB1414 Datasheet

Package / Case3-SIP

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 150V 1A 200MHz 1.5W Through Hole MT-3-A1

To learn about the specification of 2SB14140RA, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SB14140RA with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SB14140RA.
We are offering 2SB14140RA for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SB14140RA - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2SB1414 Datasheet

Standard Package

Manufacturer

Panasonic Electronic Components

Series

Packaging

Cut Tape (CT)

Part Status

Obsolete

Transistor Type

PNP

Current - Collector (Ic) (Max)

Voltage - Collector Emitter Breakdown (Max)

150V

Vce Saturation (Max) @ Ib, Ic

2V @ 50mA, 500mA

Current - Collector Cutoff (Max)

DC Current Gain (hFE) (Min) @ Ic, Vce

130 @ 150mA, 10V

Power - Max

1.5W

Frequency - Transition

200MHz

Operating Temperature

150°C (TJ)

Mounting Type

Through Hole

Package / Case

3-SIP

Supplier Device Package

MT-3-A1

Base Part Number

2SB1414
