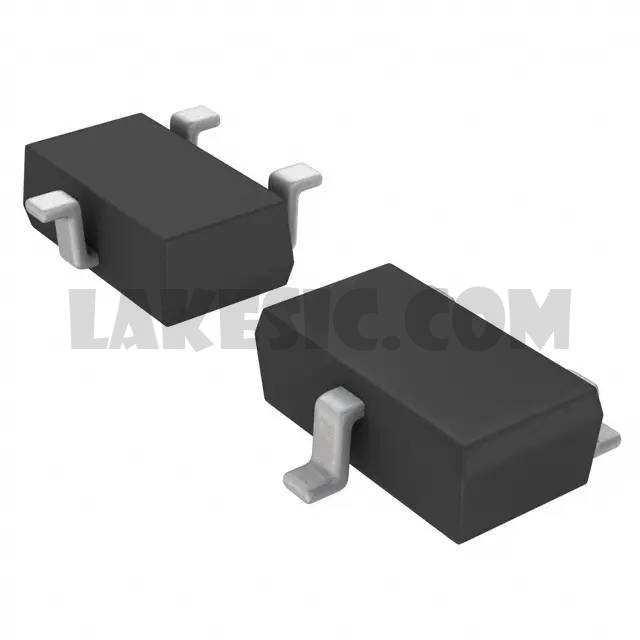

2SB1705TL

2SB1705TL

Part Number2SB1705TL

ManufacturerRohm Semiconductor

DescriptionTRANS PNP 12V 3A TSMT3

Datasheet2SB1705

Package / CaseSC-96

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 12V 3A 280MHz 500mW Surface Mount TSMT3

To learn about the specification of 2SB1705TL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SB1705TL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SB1705TL.
We are offering 2SB1705TL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SB1705TL - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2SB1705
Standard Package	1
Manufacturer	Rohm Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	3A
Voltage - Collector Emitter Breakdown (Max)	12V
Vce Saturation (Max) @ Ib, Ic	250mV @ 30mA, 1.5A
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	270 @ 500mA, 2V
Power - Max	500mW
Frequency - Transition	280MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-96
Supplier Device Package	TSMT3
Base Part Number	2SB1705
