2SB817C-1E

Part Number2SB817C-1E

ManufacturerON Semiconductor

DescriptionTRANS PNP 140V 12A

Datasheet2SB817C

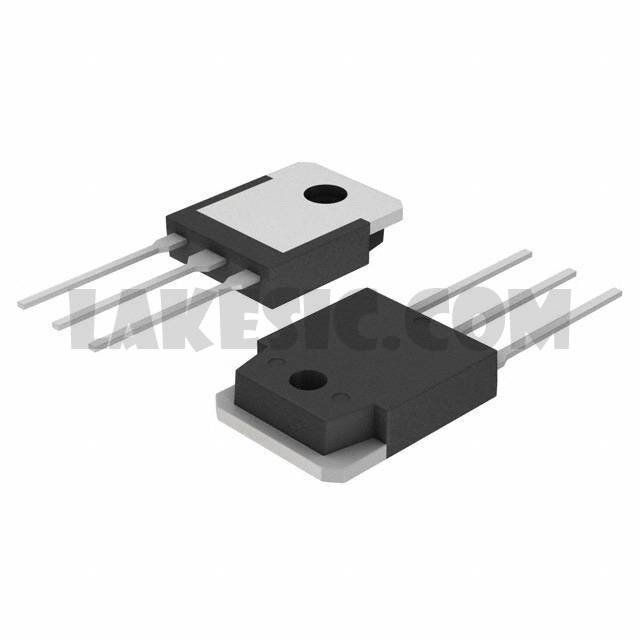

Package / CaseTO-3P-3, SC-65-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 140V 12A 10MHz 120W Through Hole TO-3P-3L

To learn about the specification of 2SB817C-1E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SB817C-1E with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SB817C-1E.
We are offering 2SB817C-1E for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SB817C-1E - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2SB817C

Standard Package

Manufacturer

ON Semiconductor

Series

Packaging

Tube

Part Status

Last Time Buy

Transistor Type

PNP

Current - Collector (Ic) (Max)

12A

Voltage - Collector Emitter Breakdown (Max)

140V

Vce Saturation (Max) @ Ib, Ic

2V @ 500mA, 5A

Current - Collector Cutoff (Max)

100µA (ICBO)

DC Current Gain (hFE) (Min) @ Ic, Vce

100 @ 1A, 5V

Power - Max

120W

Frequency - Transition

10MHz

Operating Temperature

150°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-3P-3, SC-65-3

Supplier Device Package

TO-3P-3L
