2SC3332S-AA

Part Number2SC3332S-AA

ManufacturerON Semiconductor

DescriptionTRANS NPN 160V 0.7A NP

Datasheet2SC3332

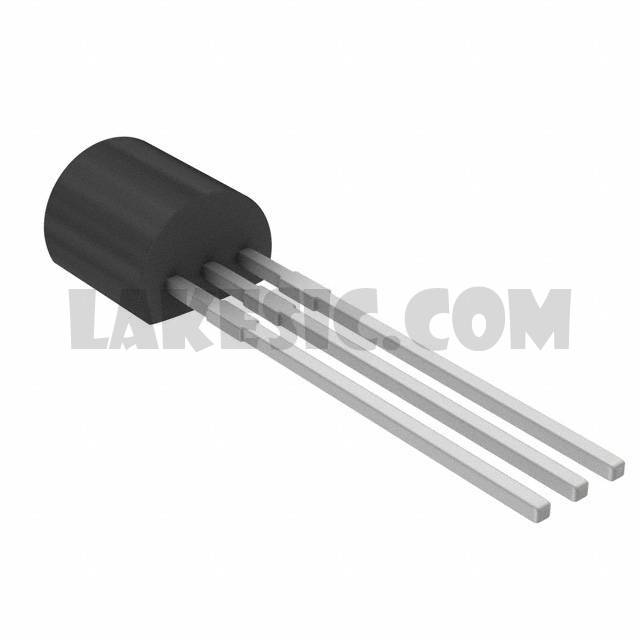

Package / CaseTO-226-3, TO-92-3 (TO-226AA)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 160V 700mA 120MHz 700mW Through Hole 3-NP

To learn about the specification of 2SC3332S-AA, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SC3332S-AA with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SC3332S-AA.
We are offering 2SC3332S-AA for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SC3332S-AA - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2SC3332

Standard Package

1500

Manufacturer

ON Semiconductor

Series

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Transistor Type

NPN

Current - Collector (Ic) (Max)

700mA

Voltage - Collector Emitter Breakdown (Max)

160V

Vce Saturation (Max) @ Ib, Ic

400mV @ 2mA, 20mA

Current - Collector Cutoff (Max)

100nA (ICBO)

DC Current Gain (hFE) (Min) @ Ic, Vce

100 @ 100mA, 5V

Power - Max

700mW

Frequency - Transition

120MHz

Operating Temperature

150°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-226-3, TO-92-3 (TO-226AA)

Supplier Device Package

3-NP

Base Part Number
